Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
XF195 XF195 Ver:200504- Parts List
Safety thermostat kit switch-off temp. 318°C 1-pole 16A probe ø
Safety thermostat kit switch-off temp. 318°C 1-pole 16A probe ø
PCB for combi-steamer LINE MISS DYNAMIC L 200mm W 95mm suitable
PCB for combi-steamer LINE MISS DYNAMIC L 200mm W 95mm suitable
Push-in fitting DMfit straight pipe connection 8mm - 10mm
Push-in fitting DMfit straight pipe connection 8mm - 10mm
Power contactor resistive load 25A 230VAC (AC3/400V) 12A/5.5kW m
Power contactor resistive load 25A 230VAC (AC3/400V) 12A/5.5kW m
Temperature probe kit NTC cable glass fibre probe -40 up to +125
Temperature probe kit NTC cable glass fibre probe -40 up to +125

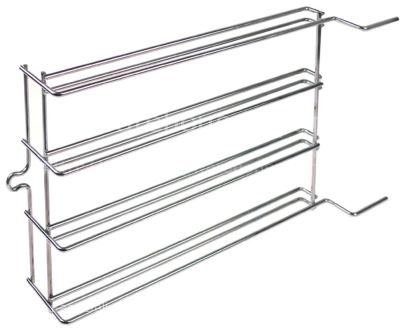

Grid attachment L 570mm H 230mm mounting pos. left/right
Grid attachment L 570mm H 230mm mounting pos. left/right
Gasket L 100mm W 22mm 7 holes graphite thickness 1mm for heating
Gasket L 100mm W 22mm 7 holes graphite thickness 1mm for heating
Microswitch with plunger thread M10 thread L 13mm 250V 5A 1CO co
Microswitch with plunger thread M10 thread L 13mm 250V 5A 1CO co
Keypad foil suitable for UNOX for LINE MISS DYNAMIC L 655mm W 35
Keypad foil suitable for UNOX for LINE MISS DYNAMIC L 655mm W 35
Opposite support mounting distance 81mm L 134mm W 10mm
Opposite support mounting distance 81mm L 134mm W 10mm
Fan motor 230V 3 phase 50Hz speeds 1 L1 85mm L2 32mm L3 28mm L4
Fan motor 230V 3 phase 50Hz speeds 1 L1 85mm L2 32mm L3 28mm L4
Control panel convection oven L 800mm mounting pos. lower grey p
Control panel convection oven L 800mm mounting pos. lower grey p

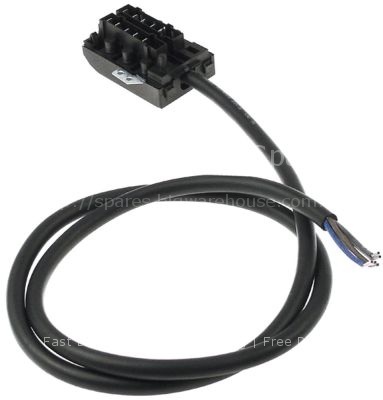

Power terminal block 5-pole with cable cable length 1400mm
Power terminal block 5-pole with cable cable length 1400mm
Push-in fitting John Guest angled pipe connection 8mm grommet
Push-in fitting John Guest angled pipe connection 8mm grommet
Displaying 1 to 20 (of 48 products)
