XF043 XF043 Ver:200805- Parts List
Knob time 60min 45mm shaft 6x4.6mm shaft flat lower gold
Knob time 60min 45mm shaft 6x4.6mm shaft flat lower gold

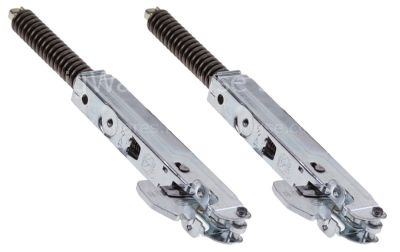

Oven hinge mounting distance 87mm spring thickness 3,2mm L 150mm
Oven hinge mounting distance 87mm spring thickness 3,2mm L 150mm
Gasket L 100mm W 22mm 7 holes graphite thickness 1mm for heating
Gasket L 100mm W 22mm 7 holes graphite thickness 1mm for heating
Timer FIBER P19 engines 1 chambers 2 operation time 4min 230V 50
Timer FIBER P19 engines 1 chambers 2 operation time 4min 230V 50
Console for handle rod H 43mm kit mounting pos. left/right
Console for handle rod H 43mm kit mounting pos. left/right
Thermostat t.max. 293°C temperature range 55-293°C 1-pole 1NO 16
Thermostat t.max. 293°C temperature range 55-293°C 1-pole 1NO 16
Equipment foot L 35mm W 35mm H 37mm bore ø 8mm Qty 4 pcs
Equipment foot L 35mm W 35mm H 37mm bore ø 8mm Qty 4 pcs
Fan motor 230V 3 phase 50Hz speeds 1 L1 85mm L2 32mm L3 28mm L4
Fan motor 230V 3 phase 50Hz speeds 1 L1 85mm L2 32mm L3 28mm L4
Microswitch with plunger thread M10 thread L 13mm 250V 5A 1CO co
Microswitch with plunger thread M10 thread L 13mm 250V 5A 1CO co
Timer M2 2-pole operation time 60min impulse mechanical 2CO at 2
Timer M2 2-pole operation time 60min impulse mechanical 2CO at 2
Power contactor resistive load 20A 230VAC (AC3/400V) 8.4A/4kW ma
Power contactor resistive load 20A 230VAC (AC3/400V) 8.4A/4kW ma
Heating element 4900W 230V heating circuits 2 ID 224mm ED 23
Heating element 4900W 230V heating circuits 2 ID 224mm ED 23
Safety thermostat switch-off temp. 335°C 2-pole 20A probe ø 3mm
Safety thermostat switch-off temp. 335°C 2-pole 20A probe ø 3mm
Displaying 1 to 20 (of 42 products)
