Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
FEY4218 Ver:200205- Parts List
Indicator light ø 12mm 400V yellow connection male faston 6.3mm
Indicator light ø 12mm 400V yellow connection male faston 6.3mm
Pull handle L 119mm H 37mm mounting distance 105mm handle M6
Pull handle L 119mm H 37mm mounting distance 105mm handle M6
O-ring Viton thickness 1,78mm ID ø 3,69mm Qty 1 pcs
O-ring Viton thickness 1,78mm ID ø 3,69mm Qty 1 pcs
Safety thermostat switch-off temp. 230°C 3-pole 2x20/1x0.5A prob
Safety thermostat switch-off temp. 230°C 3-pole 2x20/1x0.5A prob
Fryer basket L1 360mm W1 160mm H1 120mm chrome-plated steel
Fryer basket L1 360mm W1 160mm H1 120mm chrome-plated steel
Crumb screen chrome-plated steel L 340mm W 410mm fryer
Crumb screen chrome-plated steel L 340mm W 410mm fryer
Thermostat t.max. 189°C temperature range °C 1-pole 1NO 0,5A pro
Thermostat t.max. 189°C temperature range °C 1-pole 1NO 0,5A pro
Microswitch with lever 250V 16A 1CO connection male faston 6.3mm
Microswitch with lever 250V 16A 1CO connection male faston 6.3mm
O-ring Viton thickness 3,53mm ID ø 50,39mm Qty 1 pcs
O-ring Viton thickness 3,53mm ID ø 50,39mm Qty 1 pcs
Probe clip for pipe ø 8,5mm for probe ø 4mm Qty 1 pcs
Probe clip for pipe ø 8,5mm for probe ø 4mm Qty 1 pcs

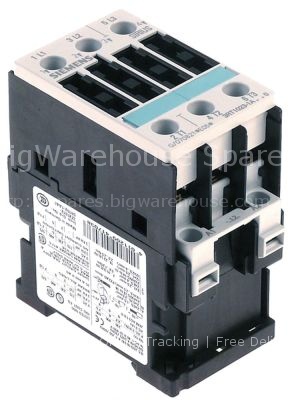

Power contactor resistive load 40A 230VAC (AC3/400V) 12A/5.5kW m
Power contactor resistive load 40A 230VAC (AC3/400V) 12A/5.5kW m

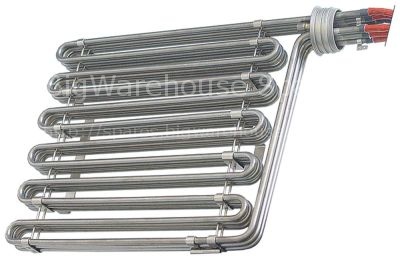

Heating element 16500W 230/400V heating circuits 3 mounting pos.
Heating element 16500W 230/400V heating circuits 3 mounting pos.
Displaying 1 to 20 (of 24 products)
