KTRC Ver:20051212- Parts List
Fan wheel ø 225mm shaft intake ø 7mm aluminium blades 5
Fan wheel ø 225mm shaft intake ø 7mm aluminium blades 5
Rocker switch mounting measurements 25,5x25mm green 2NO 250V 16A
Rocker switch mounting measurements 25,5x25mm green 2NO 250V 16A
Transformer primary 230VAC secondary 12VAC 3VA secondary 0,25A H
Transformer primary 230VAC secondary 12VAC 3VA secondary 0,25A H
Solenoid valve 2-way 230V 1,9 tube ø 6mm coil type ZB09 50/60Hz
Solenoid valve 2-way 230V 1,9 tube ø 6mm coil type ZB09 50/60Hz
Fan motor ELCO 10W 230V 50/60Hz bearing slide bearing L1 49mm L2
Fan motor ELCO 10W 230V 50/60Hz bearing slide bearing L1 49mm L2
Compressor coolant R134a type GLY12RAa 220-240V 50Hz HMBP fully
Compressor coolant R134a type GLY12RAa 220-240V 50Hz HMBP fully
Starting capacitor 43µF 330V 50/60Hz duty cycle 3 60A1D330043NX
Starting capacitor 43µF 330V 50/60Hz duty cycle 3 60A1D330043NX
Protective cover external size 35x35mm H 11mm transparent suitab
Protective cover external size 35x35mm H 11mm transparent suitab
Temperature probe NTC 10kOhm cable silicone probe -40 up to +110
Temperature probe NTC 10kOhm cable silicone probe -40 up to +110

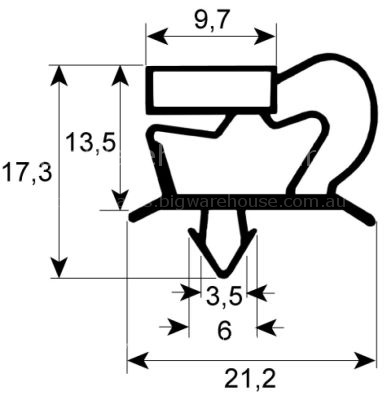

Refrigeration gasket profile 9048 W 373mm L 570mm plug size
Refrigeration gasket profile 9048 W 373mm L 570mm plug size
Drawer slide L 600mm pull-out length 660mm total length 1260mm Q
Drawer slide L 600mm pull-out length 660mm total length 1260mm Q
Drawer slide L 600mm pull-out length 660mm total length 1260mm Q
Drawer slide L 600mm pull-out length 660mm total length 1260mm Q
Refrigeration gasket profile 9048 W 246mm L 373mm plug size
Refrigeration gasket profile 9048 W 246mm L 373mm plug size
