KBP94X Ver:20090213- Parts List
Fan wheel ø 225mm shaft intake ø 7mm aluminium blades 5
Fan wheel ø 225mm shaft intake ø 7mm aluminium blades 5
Rocker switch mounting measurements 25,5x25mm green 2NO 250V 16A
Rocker switch mounting measurements 25,5x25mm green 2NO 250V 16A
Fan motor ELCO 10W 230V 50/60Hz bearing slide bearing L3 82,5mm
Fan motor ELCO 10W 230V 50/60Hz bearing slide bearing L3 82,5mm
Thermostatic steam trap W 55mm H 45mm for fridge D1 ø 22mm D2 ø
Thermostatic steam trap W 55mm H 45mm for fridge D1 ø 22mm D2 ø
Protective cover external size 35x35mm H 11mm transparent suitab
Protective cover external size 35x35mm H 11mm transparent suitab
Refrigeration gasket profile 9048 W 450mm L 600mm plug size
Refrigeration gasket profile 9048 W 450mm L 600mm plug size
Equipment foot tube ø 64mm plate size 80x100mm hole distance 60x
Equipment foot tube ø 64mm plate size 80x100mm hole distance 60x
Guide L-shape L 600mm W 20mm H 30mm mounting pos. right
Guide L-shape L 600mm W 20mm H 30mm mounting pos. right
Guide L-shape L 600mm W 20mm H 30mm mounting pos. left
Guide L-shape L 600mm W 20mm H 30mm mounting pos. left
Temperature probe NTC 10kOhm cable PVC probe -20 up to +80°C cab
Temperature probe NTC 10kOhm cable PVC probe -20 up to +80°C cab

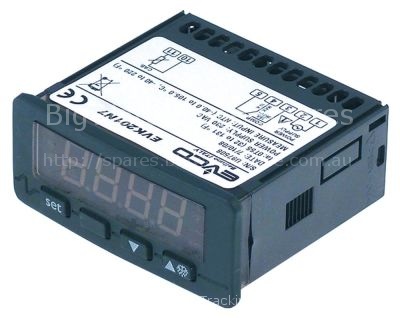

Electronic controller EVERY CONTROL type EVK201N7 mounting measu
Electronic controller EVERY CONTROL type EVK201N7 mounting measu
