Parts List

Exploded diagrams, Schematics and other documents

Click on an image to enlarge the exploded view

NECVP10GS2 Ver:200703- Parts List

  • Version
Pin ø 8mm L 19,5mm

Pin ø 8mm L 19,5mm

Ref: Pg:35 Item:00900

Pin ø 8mm L 19,5mm

more info

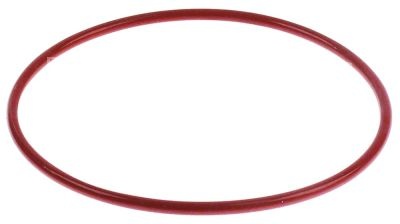

O-ring

O-ring

Ref: Pg:43 Item:01060

O-ring

more info
Ignition electrode flange length 23mm flange width 15mm D1 ø 7mm

Ignition electrode flange length 23mm flange width 15mm D1 ø 7mm

Ref: Pg:47 Item:01210

Ignition electrode flange length 23mm flange width 15mm D1 ø 7mm

more info
Hexagonal screw thread M12x1.5 L thread L 22mm bore ø 6,3mm WS 1

Hexagonal screw thread M12x1.5 L thread L 22mm bore ø 6,3mm WS 1

Ref: Pg:37 Item:00960

Hexagonal screw thread M12x1.5 L thread L 22mm bore ø 6,3mm WS 1

more info
Ignition electrode flange length 23mm flange width 15mm D1 ø 7mm

Ignition electrode flange length 23mm flange width 15mm D1 ø 7mm

Ref: Pg:47 Item:01230

Ignition electrode flange length 23mm flange width 15mm D1 ø 7mm

more info
Ball ø 8mm

Ball ø 8mm

Ref: Pg:35 Item:00910

Ball ø 8mm

more info
Lid

Lid

Ref: Pg:27 Item:00680

Lid

more info
Magnet ø 4,8mm L 63mm H 11mm W 18,8mm hole distance 51mm M4

Magnet ø 4,8mm L 63mm H 11mm W 18,8mm hole distance 51mm M4

Ref: Pg:27 Item:00570

Magnet ø 4,8mm L 63mm H 11mm W 18,8mm hole distance 51mm M4

more info

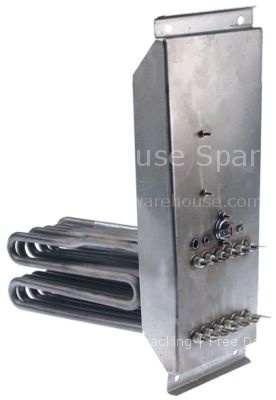

Heating element 15000W 220V heating circuits 6 L 310mm W 230mm H

Heating element 15000W 220V heating circuits 6 L 310mm W 230mm H

Ref: Pg:43 Item:01070

Heating element 15000W 220V heating circuits 6 L 310mm W 230mm H

more info
Compression spring ø 6,5mm L 14mm wire gauge ø 1,2mm

Compression spring ø 6,5mm L 14mm wire gauge ø 1,2mm

Ref: Pg:35 Item:00920

Compression spring ø 6,5mm L 14mm wire gauge ø 1,2mm

more info
Female connector 4-pole

Female connector 4-pole

Ref: Pg:27 Item:00670

Female connector 4-pole

more info
Magnetic switch L 40mm W 13mm 1NO 250V 0,04A P max. 10W connecti

Magnetic switch L 40mm W 13mm 1NO 250V 0,04A P max. 10W connecti

Ref: Pg:31 Item:00810

Magnetic switch L 40mm W 13mm 1NO 250V 0,04A P max. 10W connecti

more info
Screw bolt for combi-steamer

Screw bolt for combi-steamer

Ref: Pg:35 Item:00890

Screw bolt for combi-steamer

more info
Temperature probe Pt100 cable Vetrotex probe -200 up to +600°C c

Temperature probe Pt100 cable Vetrotex probe -200 up to +600°C c

Ref: Pg:15 Item:00210

Temperature probe Pt100 cable Vetrotex probe -200 up to +600°C c

more info
Level electrode 1/4" total length 150mm probe L 124mm insulated

Level electrode 1/4" total length 150mm probe L 124mm insulated

Ref: Pg:43 Item:01040

Level electrode 1/4" total length 150mm probe L 124mm insulated

more info
Gasket silicone thickness 7mm ID ø 193,7mm Qty 1 pcs for heating

Gasket silicone thickness 7mm ID ø 193,7mm Qty 1 pcs for heating

Ref: Pg:43 Item:01080

Gasket silicone thickness 7mm ID ø 193,7mm Qty 1 pcs for heating

more info

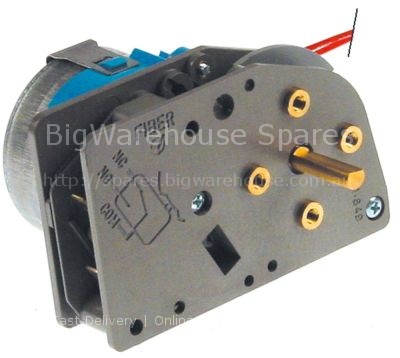

Timer FIBER P25 engines 1 chambers 1 operation time 30s 230V sha

Timer FIBER P25 engines 1 chambers 1 operation time 30s 230V sha

Ref: Pg:15 Item:00200

Timer FIBER P25 engines 1 chambers 1 operation time 30s 230V sha

more info
Encoder

Encoder

Ref: Pg:19 Item:00310

Encoder

more info
Insulation lower for combi-steamer for gas burner

Insulation lower for combi-steamer for gas burner

Ref: Pg:45 Item:01120

Insulation lower for combi-steamer for gas burner

more info
Safety thermostat switch-off temp. 135°C 1-pole 1NC 16A probe ø

Safety thermostat switch-off temp. 135°C 1-pole 1NC 16A probe ø

Ref: Pg:15 Item:00190

Safety thermostat switch-off temp. 135°C 1-pole 1NC 16A probe ø

more info
