VS90-80PGI150 Ver:201404- Parts List
Indicator light ø 12mm red 230V connection male faston 6.3mm wit
Indicator light ø 12mm red 230V connection male faston 6.3mm wit

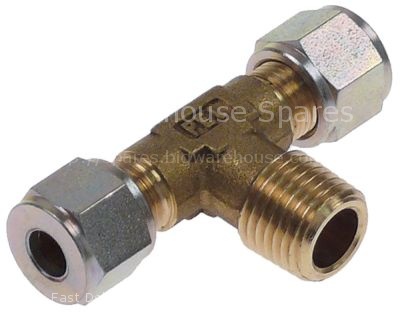

T-piece T-piece thread 1/4" for pipe ø 6mm L 55mm brass gas
T-piece T-piece thread 1/4" for pipe ø 6mm L 55mm brass gas

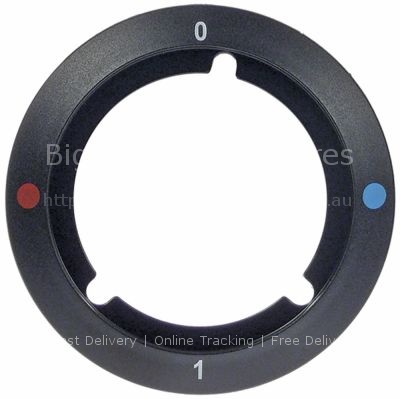

Knob kit switch zero mark shaft ø 8x6mm shaft flat upper black/s
Knob kit switch zero mark shaft ø 8x6mm shaft flat upper black/s

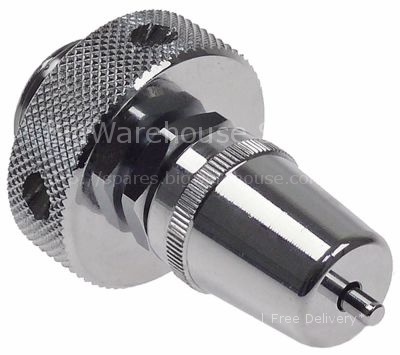

Aerator and air bleeder thread 3/8" ET WS 24 chrome-plated with
Aerator and air bleeder thread 3/8" ET WS 24 chrome-plated with
Safety valve thread 1¼" triggering pressure 0,5bar with CE appro
Safety valve thread 1¼" triggering pressure 0,5bar with CE appro
Thermocouple SIT M9x1 L 500mm plug connection ø6.0(6.5)mm
Thermocouple SIT M9x1 L 500mm plug connection ø6.0(6.5)mm

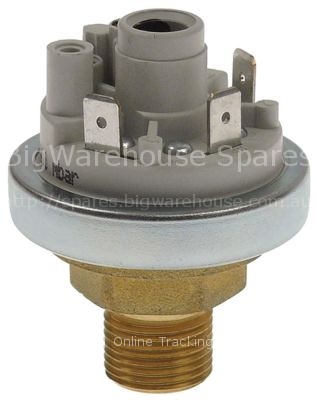

Pressure control ø 45mm kettle pressure range bar connection 1/4
Pressure control ø 45mm kettle pressure range bar connection 1/4

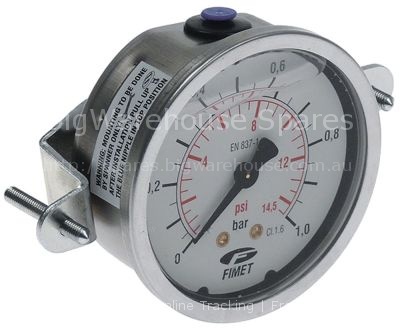

Manometer ø 63mm pressure range 0 up to 1bar 0 up to 14.5PSI fil
Manometer ø 63mm pressure range 0 up to 1bar 0 up to 14.5PSI fil
O-ring EPDM thickness 1,78mm ID ø 33,05mm Qty 10 pcs
O-ring EPDM thickness 1,78mm ID ø 33,05mm Qty 10 pcs

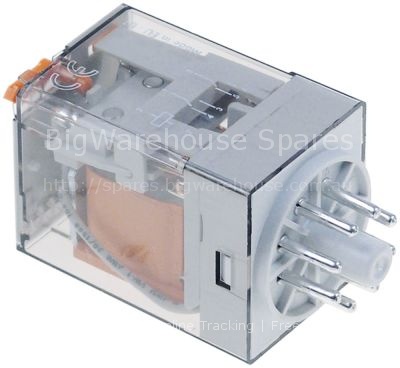

Power relays FINDER 230VAC 10A 2CO connection plug-in connection
Power relays FINDER 230VAC 10A 2CO connection plug-in connection

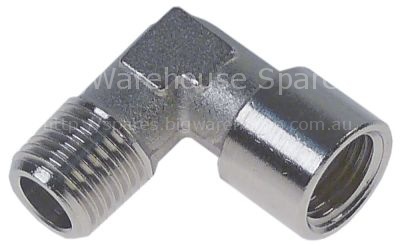

Angle piece thread 1/4" ET - 1/4" IT nickel-plated brass
Angle piece thread 1/4" ET - 1/4" IT nickel-plated brass
Fixing plate L 35mm W 10mm H 8mm M5 mounting distance 17mm
Fixing plate L 35mm W 10mm H 8mm M5 mounting distance 17mm
Solenoid valve single angled 230VAC inlet 3/4" outlet 11.5mm DN1
Solenoid valve single angled 230VAC inlet 3/4" outlet 11.5mm DN1
Displaying 1 to 20 (of 54 products)
