BMB0046-F Ver:201611- Parts List
Key cylinder with slide latch ø 18,5mm thread M19x1 thread L 14m
Key cylinder with slide latch ø 18,5mm thread M19x1 thread L 14m
LED bar L 270mm W 18mm H 18mm 24V aluminium cable length 1500mm
LED bar L 270mm W 18mm H 18mm 24V aluminium cable length 1500mm
Dryer size 30g ø 24mm L 143mm connection 6,5/6,5mm type DP20-DP7
Dryer size 30g ø 24mm L 143mm connection 6,5/6,5mm type DP20-DP7
Axial fan L 120mm W 120mm H 40mm 220V 50-60Hz 21W bearing slide
Axial fan L 120mm W 120mm H 40mm 220V 50-60Hz 21W bearing slide
Compressor coolant R404A type 220-240V 50Hz LBP 10,6kg 1/2HP cy
Compressor coolant R404A type 220-240V 50Hz LBP 10,6kg 1/2HP cy
Shelf support L 29mm W 22mm H 25mm SS for shelfs
Shelf support L 29mm W 22mm H 25mm SS for shelfs
Supply cord CEE7/7 type E+F 3-pole contacts P+N+E 1,5mm² max. 16
Supply cord CEE7/7 type E+F 3-pole contacts P+N+E 1,5mm² max. 16
Rocker switch mounting measurements 30x22mm green 2NO 250V 16A i
Rocker switch mounting measurements 30x22mm green 2NO 250V 16A i
Rocker switch mounting measurements 30x22mm green 2NO 250V 16A i
Rocker switch mounting measurements 30x22mm green 2NO 250V 16A i
Temperature probe NTC 10kOhm cable PVC probe -40 up to +110°C ca
Temperature probe NTC 10kOhm cable PVC probe -40 up to +110°C ca
Solenoid valve SANHUA type MDF-A03-3H003 230V p max 45bar L 112m
Solenoid valve SANHUA type MDF-A03-3H003 230V p max 45bar L 112m
Power supply primary 100-240VAC secondary 12VDC 15,6VA secondary
Power supply primary 100-240VAC secondary 12VDC 15,6VA secondary
Guard ø 115mm mounting distance 105mm for axial fan 119mm
Guard ø 115mm mounting distance 105mm for axial fan 119mm

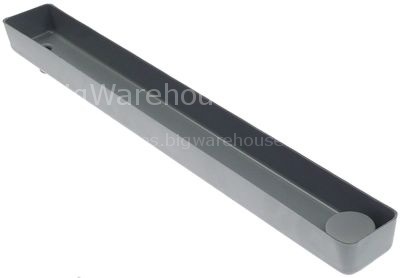

Evaporation tray L 490mm W 55mm H 35mm plastic
Evaporation tray L 490mm W 55mm H 35mm plastic

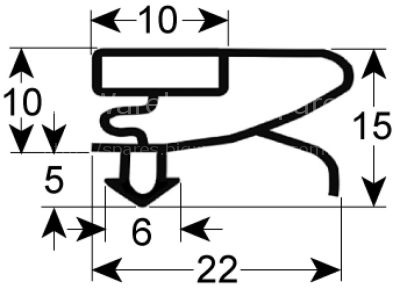

Refrigeration gasket profile 9753 W 550mm L 750mm plug size
Refrigeration gasket profile 9753 W 550mm L 750mm plug size
