Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
BAB0004 Ver:200803- Parts List
Solenoid valve single angled 230VAC inlet 3/4" outlet 11,5mm out
Solenoid valve single angled 230VAC inlet 3/4" outlet 11,5mm out

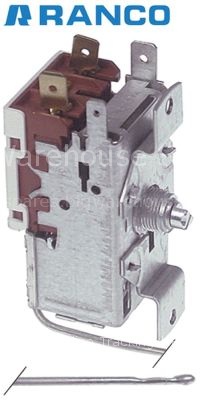

Thermostat RANCO type K50L3163 capillary pipe 2100mm
Thermostat RANCO type K50L3163 capillary pipe 2100mm

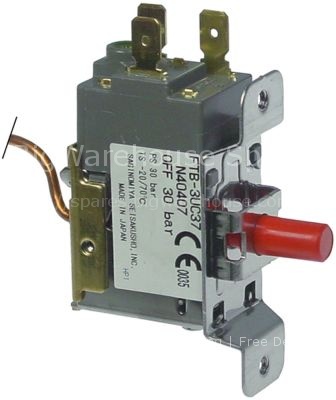

Pressure control HD reset manual p max 33bar refrigeration type
Pressure control HD reset manual p max 33bar refrigeration type

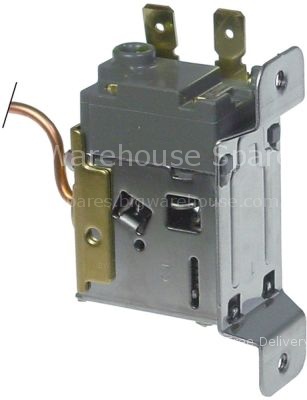

Pressure control HD reset automatic refrigeration type HTB-X114
Pressure control HD reset automatic refrigeration type HTB-X114

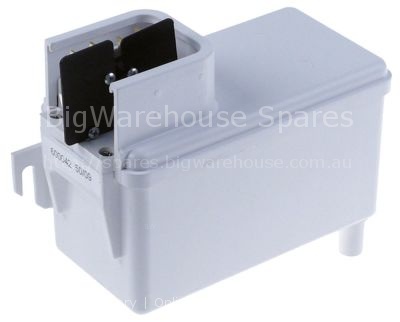

Float container 2CO L 150mm 250V 12A male faston 6.3mm
Float container 2CO L 150mm 250V 12A male faston 6.3mm

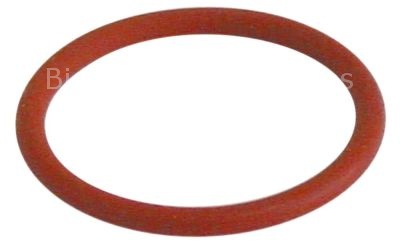

O-ring silicone thickness 3,53mm ID ø 34,52mm Qty 1 pcs
O-ring silicone thickness 3,53mm ID ø 34,52mm Qty 1 pcs
Thermostat RANCO type K50-L3274 probe ø 2mm capillary pipe 3000m
Thermostat RANCO type K50-L3274 probe ø 2mm capillary pipe 3000m
Rocker switch mounting measurements 30x22mm green 2NO 230V 16A 0
Rocker switch mounting measurements 30x22mm green 2NO 230V 16A 0

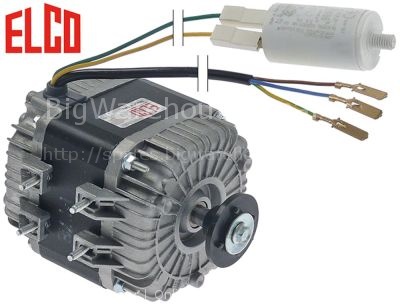

Fan motor 45W 230V 50Hz L1 53mm L2 18mm L3 120mm W 103mm cable l
Fan motor 45W 230V 50Hz L1 53mm L2 18mm L3 120mm W 103mm cable l

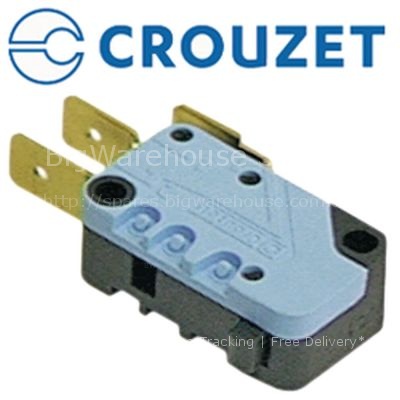

Microswitch with plunger 250V 16A 1CO connection male faston 6.3
Microswitch with plunger 250V 16A 1CO connection male faston 6.3
Sensor ø 18mm L 44mm thread M10x1 cable length 1450mm
Sensor ø 18mm L 44mm thread M10x1 cable length 1450mm

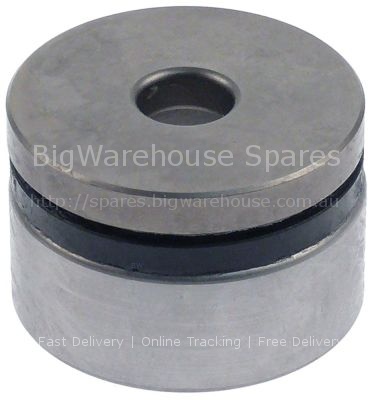

Thrust ball bearing shaft ø 30mm ED ø 62mm W 42mm type 500-4251
Thrust ball bearing shaft ø 30mm ED ø 62mm W 42mm type 500-4251

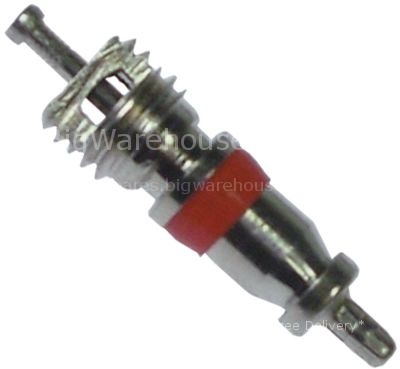

Valve body for Schrader valve thread 1/4" SAE connection 6mm sol
Valve body for Schrader valve thread 1/4" SAE connection 6mm sol
Fan wheel sucking ø 300mm fan wheel mounting 25,4mm blade angle
Fan wheel sucking ø 300mm fan wheel mounting 25,4mm blade angle
Displaying 1 to 20 (of 83 products)
