Reduction ring ED ø 54mm int. ø 1 42mm int. ø 2 34mm H 30mm
Equipment foot tube ø 50mm thread M10 thread L 12mm H 130-180mm
O-ring silicone thickness 2,62mm ID ø 21,89mm Qty 10 pcs
Pressure control HD reset automatic refrigeration type HTB-X114
Fan motor 10W 230V 50Hz L1 48mm L2 70mm L3 85mm W 83mm feet dept
Gasket silicone ED ø 40mm ID ø 30mm thickness 2mm Qty 1 pcs
Thermostat RANCO type K50L3383 capillary pipe 1500mm
Valve body for Schrader valve thread 1/4" SAE connection 6mm sol
Thermostat RANCO type K50L3163 capillary pipe 2100mm
Rocker switch mounting measurements 30x22mm green 2NO 230V 16A 0
O-ring EPDM thickness 2,62mm ID ø 34,6mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 34,6mm Qty 1 pcs
Drain fitting straight connection 24mm for ice maker

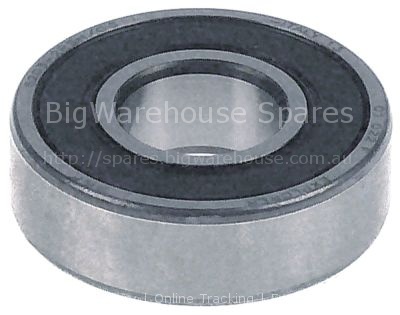

Deep-groove ball bearing type 6203-2RS shaft ø 17mm ED ø 40mm W
Solenoid valve single angled 230VAC inlet 3/4" outlet 11,5mm out
Float container 2CO L 150mm 250V 12A male faston 6.3mm
