Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
REV101M Ver:20100801- Parts List
Heating element 6000W 230V heating circuits 3 ID 215mm ED 22
Heating element 6000W 230V heating circuits 3 ID 215mm ED 22
Timer MS65 operation time 120min 1CO/2NO at 250V 16A time range
Timer MS65 operation time 120min 1CO/2NO at 250V 16A time range
Thermostat t.max. 320°C temperature range 50-320°C 1-pole 1NO 15
Thermostat t.max. 320°C temperature range 50-320°C 1-pole 1NO 15
Timer CDC 4902F1 engines 1 chambers 2 operation time 8min 230V
Timer CDC 4902F1 engines 1 chambers 2 operation time 8min 230V
Thermostat t.max. 65°C temperature range fixed 65°C 1-pole 1CO 1
Thermostat t.max. 65°C temperature range fixed 65°C 1-pole 1CO 1
Solenoid valve double straight 230VAC inlet 3/4 outlet JG 10 inp
Solenoid valve double straight 230VAC inlet 3/4 outlet JG 10 inp
Cam switch 5 operating positions 9NO sequence 1-0-2-3-4 16A shaf
Cam switch 5 operating positions 9NO sequence 1-0-2-3-4 16A shaf

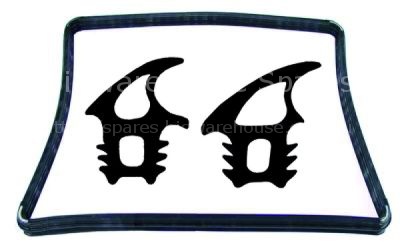

Door seal profile 2770/2771 H 820mm W 600mm outer plug size Qty
Door seal profile 2770/2771 H 820mm W 600mm outer plug size Qty
Lamp socket complete version socket E14 mounting measurements 55
Lamp socket complete version socket E14 mounting measurements 55
Microswitch with plunger thread M10x1 thread L 12mm 250V 16A 1CO
Microswitch with plunger thread M10x1 thread L 12mm 250V 16A 1CO
Door catch with spigot 1-stage L 26mm total length 51mm thread M
Door catch with spigot 1-stage L 26mm total length 51mm thread M
Power contactor resistive load 22A 230VAC (AC3/400V) 9A/4kW main
Power contactor resistive load 22A 230VAC (AC3/400V) 9A/4kW main
Fan motor 220-240V 1 phase 50/60Hz 0,12kW 2800/3200rpm speeds 1
Fan motor 220-240V 1 phase 50/60Hz 0,12kW 2800/3200rpm speeds 1
Fan wheel D1 ø 180mm H1 77mm blades 12 D2 ø 8mm D3 ø 6mm H2 25,5
Fan wheel D1 ø 180mm H1 77mm blades 12 D2 ø 8mm D3 ø 6mm H2 25,5
Rail-mounted terminal block 5-pole contacts 3P+N+E cross section
Rail-mounted terminal block 5-pole contacts 3P+N+E cross section
Guard ø 170mm hole ø 7mm for hot air fan combi-steamer
Guard ø 170mm hole ø 7mm for hot air fan combi-steamer
Displaying 1 to 20 (of 37 products)
