TV2000 Ver:Vers1 Parts List
Ejector disc flat H 6mm ø 200mm seat ø 21mm hole distance 40mm
Ejector disc flat H 6mm ø 200mm seat ø 21mm hole distance 40mm

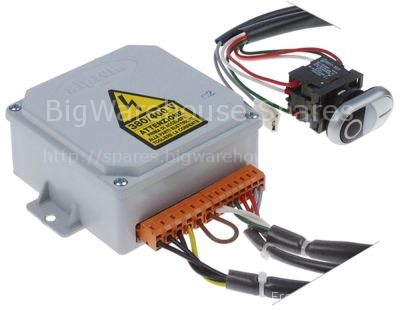

Control box complete vegetable slicers 380400V
Control box complete vegetable slicers 380400V
Ejector disc high H 25mm 200mm seat 21mm hole distance 40mm
Ejector disc high H 25mm 200mm seat 21mm hole distance 40mm
Pulley disc ø 157mm disc width 31mm shaft intake ø 15mm overall
Pulley disc ø 157mm disc width 31mm shaft intake ø 15mm overall
Deep-groove ball bearing type 6203-2RS shaft ø 17mm ED ø 40mm W
Deep-groove ball bearing type 6203-2RS shaft ø 17mm ED ø 40mm W
Momentary push switch mounting measurements ø22mm black/white 1N
Momentary push switch mounting measurements ø22mm black/white 1N
Retaining ring bore ø 40mm thickness 1,9mm steel DIN 472
Retaining ring bore ø 40mm thickness 1,9mm steel DIN 472
Microswitch with plunger mounting distance 25mm thread M12x1 thr
Microswitch with plunger mounting distance 25mm thread M12x1 thr
Motor 450W 230V 50Hz 1 phase shaft 14mm flange 160mm 1320rpm
Motor 450W 230V 50Hz 1 phase shaft 14mm flange 160mm 1320rpm
Shaft seal ID � 25mm ED � 40mm thickness 5mm
Shaft seal ID � 25mm ED � 40mm thickness 5mm
Threaded bush ø 12mm ID ø 5mm H 8mm thread M5 for vegetable slic
Threaded bush ø 12mm ID ø 5mm H 8mm thread M5 for vegetable slic
Poly-v belt grooves 10 W 24mm L 762mm profile J
Poly-v belt grooves 10 W 24mm L 762mm profile J
Equipment foot thread M5 thread L 10mm ø 35mm H 28mm Qty 1 pcs
Equipment foot thread M5 thread L 10mm ø 35mm H 28mm Qty 1 pcs
Bush ED ø 22mm ID ø 18mm H 8,6mm for vegetable slicer
Bush ED ø 22mm ID ø 18mm H 8,6mm for vegetable slicer
Bush ED ø 25mm ID ø 17mm H 5,5mm for vegetable slicer
Bush ED ø 25mm ID ø 17mm H 5,5mm for vegetable slicer
Displaying 1 to 20 (of 52 products)
