Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
PPF18M Ver:Vers1 Parts List
Magnetic switch thread M10x0.75 1NO 250V 0,5A P max. 50W connect
Magnetic switch thread M10x0.75 1NO 250V 0,5A P max. 50W connect
Lid gasket suitable for FIMAR for potato peeler device L 1280mm
Lid gasket suitable for FIMAR for potato peeler device L 1280mm
Lid for potato peeler device ø 430mm ID ø 380mm plastic mounting
Lid for potato peeler device ø 430mm ID ø 380mm plastic mounting
Retaining ring bore 42mm thickness 175mm steel DIN 472
Retaining ring bore 42mm thickness 175mm steel DIN 472
Grinding disc ø 367mm for potato peeler device edition until yea
Grinding disc ø 367mm for potato peeler device edition until yea
Poly-v belt grooves 12 W 28mm L 559mm profile J
Poly-v belt grooves 12 W 28mm L 559mm profile J
Bush for potato peeler device ED ø 20mm ID ø 16mm thickness 2mm
Bush for potato peeler device ED ø 20mm ID ø 16mm thickness 2mm
Timer T203 1-pole operation time 5min impulse mechanical 1NO at
Timer T203 1-pole operation time 5min impulse mechanical 1NO at
Brush disc for potato peeler device ø 387mm H 46mm hole ø 65,5mm
Brush disc for potato peeler device ø 387mm H 46mm hole ø 65,5mm
V-ripped belt pulley grooves 12 disc ø 38mm shaft intake ø 14mm
V-ripped belt pulley grooves 12 disc ø 38mm shaft intake ø 14mm
O-ring NBR thickness 7mm ID ø 387mm Qty 1 pcs
O-ring NBR thickness 7mm ID ø 387mm Qty 1 pcs
Grinding disc ø 380mm for potato peeler device
Grinding disc ø 380mm for potato peeler device
Frame W 202mm H 154mm thickness 4mm plastic for potato peeler de
Frame W 202mm H 154mm thickness 4mm plastic for potato peeler de
Motor 1100W 230/400-275/480V 50/60Hz 3 phase flange ø 160mm 1410
Motor 1100W 230/400-275/480V 50/60Hz 3 phase flange ø 160mm 1410

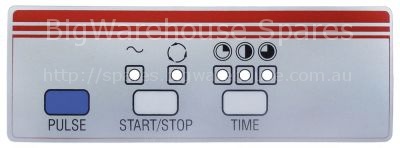

Keypad foil for potato peeler device silver L 175mm W 61mm butto
Keypad foil for potato peeler device silver L 175mm W 61mm butto
Deep-groove ball bearing type 6302-2RS shaft ø 15mm ED ø 42mm W
Deep-groove ball bearing type 6302-2RS shaft ø 15mm ED ø 42mm W
Power PCB for potato peeler device L 150mm W 100mm
Power PCB for potato peeler device L 150mm W 100mm
Displaying 1 to 20 (of 84 products)
