12-S-Meat-Mincer-Cookmax Parts List
Auger model 12 ø 54mm L 150mm stainless steel with spindle ENTER
Auger model 12 ø 54mm L 150mm stainless steel with spindle ENTER
Auger chamber ENTERPRISE model 12 inlet ø 60mm stainless steel
Auger chamber ENTERPRISE model 12 inlet ø 60mm stainless steel
Ring nut model 12 ED ø 91mm thickness 30mm ID ø 80mm aluminium
Ring nut model 12 ED ø 91mm thickness 30mm ID ø 80mm aluminium

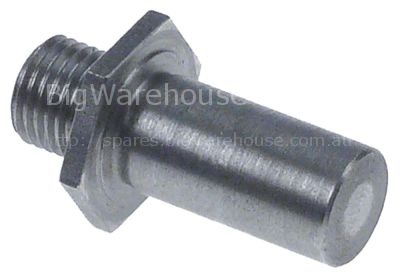

Spindle ø 15mm L 30mm thread M14x1.5 total length 45mm
Spindle ø 15mm L 30mm thread M14x1.5 total length 45mm
Gear wheel ø 64mm shaft intake ø 16mm teeth 40 tooth width 13mm
Gear wheel ø 64mm shaft intake ø 16mm teeth 40 tooth width 13mm
Gear wheel ø 25mm shaft intake ø 10mm teeth 13 tooth width 20mm
Gear wheel ø 25mm shaft intake ø 10mm teeth 13 tooth width 20mm
Lid model 12-22 ø 100mm plastic mounting distance 85mm
Lid model 12-22 ø 100mm plastic mounting distance 85mm
Operating capacitor capacity 16µF 425V tolerance 5% 50/60Hz
Operating capacitor capacity 16µF 425V tolerance 5% 50/60Hz
Gear wheel double ø 32/70mm shaft intake ø 15mm W 30mm teeth 18/
Gear wheel double ø 32/70mm shaft intake ø 15mm W 30mm teeth 18/
Equipment foot ø 22mm H 13,5mm bore ø 5mm Qty 1 pcs
Equipment foot ø 22mm H 13,5mm bore ø 5mm Qty 1 pcs
Momentary push switch mounting measurements ø22mm black/white 1N
Momentary push switch mounting measurements ø22mm black/white 1N
Drive shaft ENTERPRISE model 12 ø 9,5mm L 67mm thread M12x1.75 D
Drive shaft ENTERPRISE model 12 ø 9,5mm L 67mm thread M12x1.75 D
Displaying 1 to 20 (of 42 products)
