FME99 Ver:Vers1 Parts List
Transformer primary 230VAC secondary 12VAC 20VA connection male
Transformer primary 230VAC secondary 12VAC 20VA connection male
Halogen lamp socket GU5.3 12V 20W ø 35mm H 38mm AC/DC
Halogen lamp socket GU5.3 12V 20W ø 35mm H 38mm AC/DC
Rocker switch mounting measurements 30x11mm green 1NO/indicator
Rocker switch mounting measurements 30x11mm green 1NO/indicator
Oven lamp mounting ø 35,5mm 230V 25W socket E14 temp.-resist. 30
Oven lamp mounting ø 35,5mm 230V 25W socket E14 temp.-resist. 30
Lamp socket socket E14 220-230V mounting ø 35,5mm connection mal
Lamp socket socket E14 220-230V mounting ø 35,5mm connection mal
Glass panel L 250mm W 100mm thickness 5mm rectangular
Glass panel L 250mm W 100mm thickness 5mm rectangular
Firebrick L 915mm W 610mm H 18mm delivery freight forwarding com
Firebrick L 915mm W 610mm H 18mm delivery freight forwarding com
Oven lamp glass thread 32,1 ø 58mm hard glas temp.-resist. 350°C
Oven lamp glass thread 32,1 ø 58mm hard glas temp.-resist. 350°C
Thermometer mounting ø 60 mm t.max. 500 °C 0 up to +500°C probe
Thermometer mounting ø 60 mm t.max. 500 °C 0 up to +500°C probe
Knob thermostat t.max. 500°C ø 50mm shaft ø 6x4.6mm shaft flat u
Knob thermostat t.max. 500°C ø 50mm shaft ø 6x4.6mm shaft flat u
Light bulb t.max. 300C socket E14 25W 230V 25mm L 56mm lens L 30
Light bulb t.max. 300C socket E14 25W 230V 25mm L 56mm lens L 30
Heating element 1600W 230V L 890mm W 220mm connection length 93m
Heating element 1600W 230V L 890mm W 220mm connection length 93m

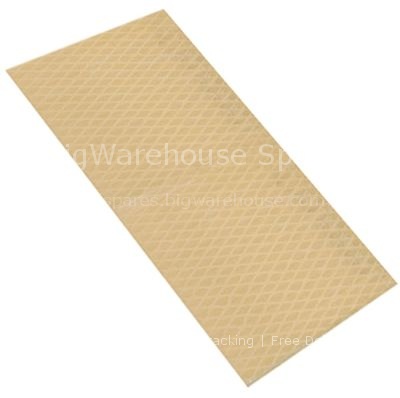

Firebrick L 915mm W 450mm H 17mm delivery freight forwarding com
Firebrick L 915mm W 450mm H 17mm delivery freight forwarding com
Displaying 1 to 20 (of 38 products)
