Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
7SN-monofase-Cookmax Parts List
Momentary push switch mounting measurements ø22mm black 1NC OFF
Momentary push switch mounting measurements ø22mm black 1NC OFF
Rotary switch 2 1-2 sets of contacts 8 type T0-4-969I/E 400V 16A
Rotary switch 2 1-2 sets of contacts 8 type T0-4-969I/E 400V 16A
Microswitch with handle with a switch 250V 16A 1CO connection ma
Microswitch with handle with a switch 250V 16A 1CO connection ma
Toothed chain drive DIN/ISO 06 B-1 splitting 3/8" teeth 15 shaft
Toothed chain drive DIN/ISO 06 B-1 splitting 3/8" teeth 15 shaft
Connector single DIN/ISO 06 B-1 splitting 3/8" links 1 L 17,8mm
Connector single DIN/ISO 06 B-1 splitting 3/8" links 1 L 17,8mm
Bearing block for mixer bowl mounting pos. lower ø 103mm ID ø 40
Bearing block for mixer bowl mounting pos. lower ø 103mm ID ø 40

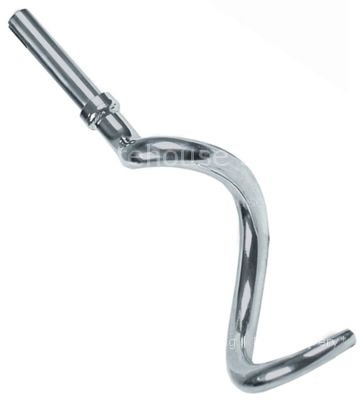

Dough hook shaft ø 17mm usable height 225mm 7 S
Dough hook shaft ø 17mm usable height 225mm 7 S
Toothed chain drive DIN/ISO 05 B-1 splitting 8mm teeth 76 shaft
Toothed chain drive DIN/ISO 05 B-1 splitting 8mm teeth 76 shaft
Deep-groove ball bearing type 6203-2RS shaft ø 17mm ED ø 40mm W
Deep-groove ball bearing type 6203-2RS shaft ø 17mm ED ø 40mm W
Bearing block for dough hook mounting pos. upper ø 103mm ID ø 40
Bearing block for dough hook mounting pos. upper ø 103mm ID ø 40
Spindle for mixer bowl ø 17mm D1 ø 20mm L 127mm 7-12-18 S-C-F
Spindle for mixer bowl ø 17mm D1 ø 20mm L 127mm 7-12-18 S-C-F
Displaying 1 to 20 (of 51 products)
