Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
IM38C Ver:Vers1 Parts List
Flange for mounting flange ø 180mm D1 ø 60mm thickness 22mm 25-3
Flange for mounting flange ø 180mm D1 ø 60mm thickness 22mm 25-3
Gearbox motor shaft ø 19mm flange ø 160mm transmission 1/28 driv
Gearbox motor shaft ø 19mm flange ø 160mm transmission 1/28 driv
Bearing block for mixer bowl mounting pos. lower ø 145mm ID ø 42
Bearing block for mixer bowl mounting pos. lower ø 145mm ID ø 42
Deep-groove ball bearing type 6006-2RS shaft ø 30mm ED ø 55mm W
Deep-groove ball bearing type 6006-2RS shaft ø 30mm ED ø 55mm W
Dough hook thread M18x1.5 usable height 290mm 25-38 S-C-F
Dough hook thread M18x1.5 usable height 290mm 25-38 S-C-F
Retaining ring bore ø 47mm thickness 1,8mm steel DIN 472
Retaining ring bore ø 47mm thickness 1,8mm steel DIN 472
Flange bearing type UCF205 shaft ø 25mm 4 hole flange hole dista
Flange bearing type UCF205 shaft ø 25mm 4 hole flange hole dista
Microswitch with plunger mounting distance 25mm thread M12x1 thr
Microswitch with plunger mounting distance 25mm thread M12x1 thr
Connector single DIN/ISO 06 B-1 splitting 3/8" links 1 L 17,8mm
Connector single DIN/ISO 06 B-1 splitting 3/8" links 1 L 17,8mm
Toothed chain drive DIN/ISO 08 B-1 splitting 1/2" teeth 15 shaft
Toothed chain drive DIN/ISO 08 B-1 splitting 1/2" teeth 15 shaft
Connector single DIN/ISO 08 B-1 splitting 1/2" links 1 L 23mm in
Connector single DIN/ISO 08 B-1 splitting 1/2" links 1 L 23mm in
Bearing block for dough hook complete mounting pos. upper ø 121m
Bearing block for dough hook complete mounting pos. upper ø 121m

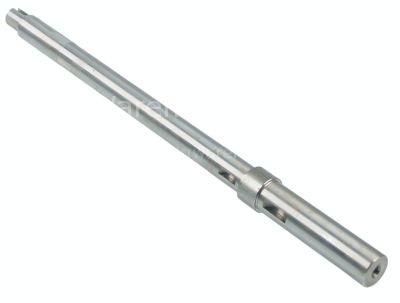

Spindle D1 ø 25mm for dough hook ø 20mm L 150mm 25-38 C-F D2 ø 3
Spindle D1 ø 25mm for dough hook ø 20mm L 150mm 25-38 C-F D2 ø 3

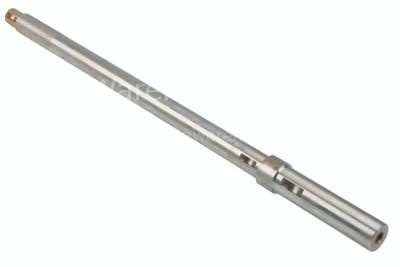

Spindle for mixer bowl ø 20mm D1 ø 25mm L 138mm 25-38 S-C-F
Spindle for mixer bowl ø 20mm D1 ø 25mm L 138mm 25-38 S-C-F
Retaining ring shaft ø 25mm thickness 1,2mm steel DIN 471
Retaining ring shaft ø 25mm thickness 1,2mm steel DIN 471
Displaying 1 to 20 (of 87 products)
