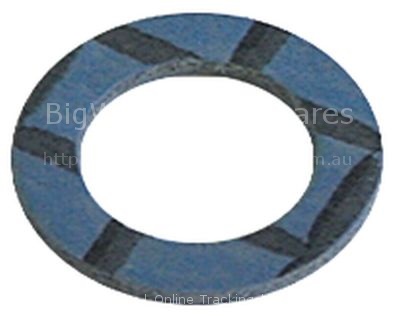

Flat gasket fibre ED ø 20mm ID ø 14mm thickness 2mm Qty 1 pcs
Mechanical shaft seal for shaft ø 12mm slide ringext. ø 24mm sli
Supply hose ID ø 10mm ED ø 17mm L 5m operating p. 20bar burst p.
Flat gasket FIBER ED ø 33mm ID ø 21mm thickness 1,5mm Qty 1 pcs
O-ring EPDM thickness 1,78mm ID ø 14mm Qty 1 pcs
Salt tank ø 120mm H 117mm hose ø 10mm mounting ø 70mm overall he
Drain hose DN19 L 1500mm A int. ø 23mm A ext. ø 29mm B int. ø 29
Pressure control hose ID ø 5mm ED ø 9mm L 5m operating p. 30bar
Flat gasket FIBER ED ø 35mm ID ø 27mm thickness 1,5mm Qty 1 pcs
Flat gasket rubber ED ø 14,4mm ID ø 15,5mm thickness 2mm Qty 1 p
Deep-groove ball bearing type 6201-2RS shaft ø 12mm ED ø 32mm W
O-ring EPDM thickness 2,62mm ID ø 12,37mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 10,78mm Qty 1 pcs
Flat gasket rubber ED ø 22mm ID ø 13mm thickness 1,5mm Qty 1 pcs
