Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
916066 Ver:201502- Parts List
Temperature probe NTC 10kOhm cable silicone probe -40 up to +110
Temperature probe NTC 10kOhm cable silicone probe -40 up to +110
Solenoid valve single 230VAC outlet 10,5mm MILANO 00168401 plas
Solenoid valve single 230VAC outlet 10,5mm MILANO 00168401 plas
Dosing pump SEKO 3l/h 230 VAC detergent hose 4x6mm hose type L
Dosing pump SEKO 3l/h 230 VAC detergent hose 4x6mm hose type L
Pressure control hose ID ø 5mm ED ø 9mm L 5m operating p. 30bar
Pressure control hose ID ø 5mm ED ø 9mm L 5m operating p. 30bar
Knurled nut mounting pos. upper/lateral ø 19,65mm H 4mm thread M
Knurled nut mounting pos. upper/lateral ø 19,65mm H 4mm thread M

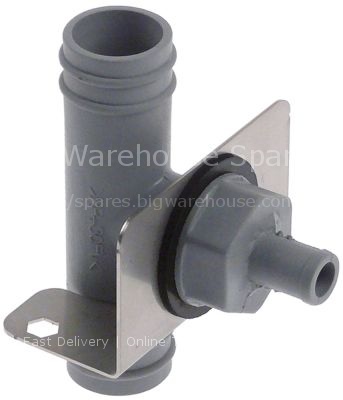

Air valve for drain hose D1 ø 21mm D2 ø 10,5mm
Air valve for drain hose D1 ø 21mm D2 ø 10,5mm
Deep-groove ball bearing type 608-2Z shaft ø 8mm ED ø 22mm W 7mm
Deep-groove ball bearing type 608-2Z shaft ø 8mm ED ø 22mm W 7mm
Mechanical shaft seal for shaft ø 8mm ED ø 24mm H 14,4mm
Mechanical shaft seal for shaft ø 8mm ED ø 24mm H 14,4mm
O-ring EPDM thickness 2,62mm ID ø 82,22mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 82,22mm Qty 1 pcs

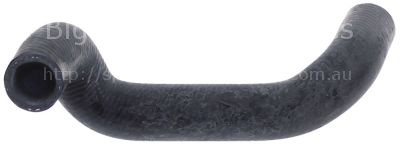

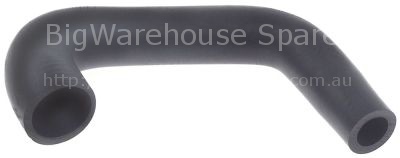

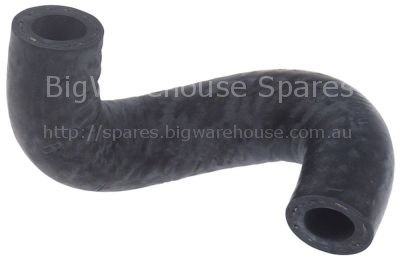

Formed hose ED ø 29mm hose int. ø 21mm warewashing
Formed hose ED ø 29mm hose int. ø 21mm warewashing

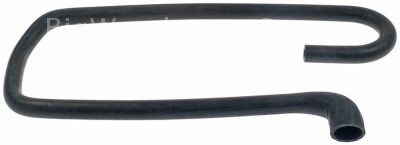

Formed hose ext. ø 30 D1 ø 25mm D2 ø 11mm L 860mm
Formed hose ext. ø 30 D1 ø 25mm D2 ø 11mm L 860mm
Bi-metal safety thermostat switch-off temp. 95C 1-pole 2 hole f
Bi-metal safety thermostat switch-off temp. 95C 1-pole 2 hole f
Displaying 1 to 20 (of 145 products)
