Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
LP3 Ver:00010062- Parts List
Safety thermostat switch-off temp. 90-110°C 1-pole 16A probe ø 6
Safety thermostat switch-off temp. 90-110°C 1-pole 16A probe ø 6
Power contactor resistive load 20 A 230VAC (AC3/400V) 8.5A/5.5kW
Power contactor resistive load 20 A 230VAC (AC3/400V) 8.5A/5.5kW
Flat gasket FIBER ED ø 14mm ID ø 8mm thickness 1,5mm Qty 1 pcs
Flat gasket FIBER ED ø 14mm ID ø 8mm thickness 1,5mm Qty 1 pcs

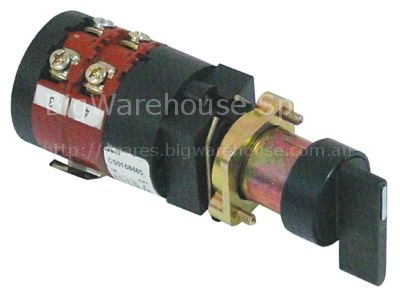

Rotary switch 5 0-1-2-3-4-5 sets of contacts 4 type CS0168485 40
Rotary switch 5 0-1-2-3-4-5 sets of contacts 4 type CS0168485 40
O-ring EPDM thickness 5,34mm ID ø 56,52mm Qty 1 pcs
O-ring EPDM thickness 5,34mm ID ø 56,52mm Qty 1 pcs
Magnetic switch 250V 0,04A P max. 10W probe L 30mm 1NO connectio
Magnetic switch 250V 0,04A P max. 10W probe L 30mm 1NO connectio
Hose clamp ø 12-20mm width 9mm Qty 10 pcs DIN 3017
Hose clamp ø 12-20mm width 9mm Qty 10 pcs DIN 3017
Hose clamp ø 60-80mm width 9mm Qty 5 pcs DIN 3017
Hose clamp ø 60-80mm width 9mm Qty 5 pcs DIN 3017
Indicator lamp green 250V connection male faston 6.3mm protectio
Indicator lamp green 250V connection male faston 6.3mm protectio
O-ring EPDM thickness 2mm ID ø 6,5mm Qty 1 pcs
O-ring EPDM thickness 2mm ID ø 6,5mm Qty 1 pcs
Heating element 6000W 230V heating circuits 3 mounting 575mm
Heating element 6000W 230V heating circuits 3 mounting 575mm
Flat gasket rubber ED ø 75mm ID ø 58mm thickness 3mm Qty 1 pcs
Flat gasket rubber ED ø 75mm ID ø 58mm thickness 3mm Qty 1 pcs
Formed hose end piece A int. ø 60mm ø end piece B 60mm warewashi
Formed hose end piece A int. ø 60mm ø end piece B 60mm warewashi
Displaying 1 to 20 (of 125 products)
