Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
LB200A-METRO-FRANCE Ver:200504- Parts List
O-ring EPDM thickness 2,62mm ID ø 20,63mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 20,63mm Qty 1 pcs
Pressure control pressure range 28/12mbar connection 6mm ø 58mm
Pressure control pressure range 28/12mbar connection 6mm ø 58mm
Plain washer ID ø 6,4mm ED ø 12mm thickness 1,6mm SS Qty 20 pcs
Plain washer ID ø 6,4mm ED ø 12mm thickness 1,6mm SS Qty 20 pcs
Plain washer ID ø 6,4mm ED ø 12mm thickness 1,6mm SS Qty 20 pcs
Plain washer ID ø 6,4mm ED ø 12mm thickness 1,6mm SS Qty 20 pcs
Indicator lamp 230V green connection male faston 6.3mm no lens ø
Indicator lamp 230V green connection male faston 6.3mm no lens ø
O-ring EPDM thickness 2mm ID ø 13mm Qty 1 pcs
O-ring EPDM thickness 2mm ID ø 13mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 45,69mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 45,69mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 45,69mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 45,69mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 9,13mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 9,13mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 53,57mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 53,57mm Qty 1 pcs

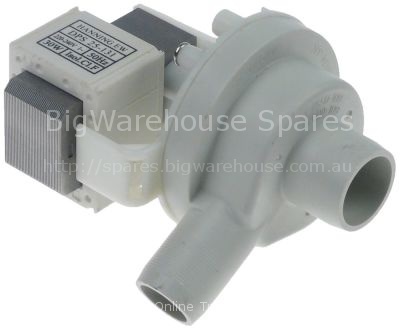

Drain pump inlet 30mm outlet 22mm 100W 230V 50Hz GRE
Drain pump inlet 30mm outlet 22mm 100W 230V 50Hz GRE
O-ring EPDM thickness 2,62mm ID ø 28,25mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 28,25mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 37,69mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 37,69mm Qty 1 pcs
Push button ø 21mm shaft 3.5x3.5mm dark blue ON-OFF suitable for
Push button ø 21mm shaft 3.5x3.5mm dark blue ON-OFF suitable for
O-ring EPDM thickness 3,53mm ID ø 20,22mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 20,22mm Qty 1 pcs
O-ring EPDM thickness 5,34mm ID ø 47mm Qty 1 pcs
O-ring EPDM thickness 5,34mm ID ø 47mm Qty 1 pcs
Displaying 1 to 20 (of 240 products)
