Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
GB1555W-Cookmax Ver:201501- Parts List
Ball bearing type 500-4252 shaft ø 19mm ED ø 40mm W 30mm stainle
Ball bearing type 500-4252 shaft ø 19mm ED ø 40mm W 30mm stainle
Plain washer ID 24mm ED 416mm thickness 2mm SS Qty 1 pcs
Plain washer ID 24mm ED 416mm thickness 2mm SS Qty 1 pcs
Retaining ring bore 42mm thickness 175mm steel DIN 472
Retaining ring bore 42mm thickness 175mm steel DIN 472
Solenoid valve double angled 230VAC inlet 3/4" input 10l/min out
Solenoid valve double angled 230VAC inlet 3/4" input 10l/min out
Plain washer ID 24mm ED 42mm thickness 15mm SS Qty 1 pcs fo
Plain washer ID 24mm ED 42mm thickness 15mm SS Qty 1 pcs fo
Hose connector 3-way with hose for ice-cube maker
Hose connector 3-way with hose for ice-cube maker
Gasket silicone ED ø 40mm ID ø 30mm thickness 2mm Qty 1 pcs
Gasket silicone ED ø 40mm ID ø 30mm thickness 2mm Qty 1 pcs
Equipment foot tube ø 50mm thread M10 thread L 12mm H 130-180mm
Equipment foot tube ø 50mm thread M10 thread L 12mm H 130-180mm
O-ring silicone thickness 262mm ID 2189mm Qty 1 pcs
O-ring silicone thickness 262mm ID 2189mm Qty 1 pcs

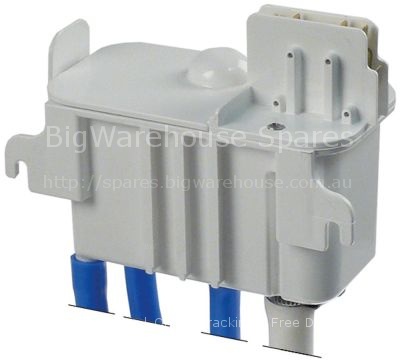

Float container L 150mm W 80mm H 130mm with switch
Float container L 150mm W 80mm H 130mm with switch
Valve body for Schrader valve thread 1/4" SAE connection 6mm sol
Valve body for Schrader valve thread 1/4" SAE connection 6mm sol
Dryer size 12g ø 16mm L 120mm connection 3/6,3mm
Dryer size 12g ø 16mm L 120mm connection 3/6,3mm
Microswitch with plunger 250V 16A 1CO connection male faston 6.3
Microswitch with plunger 250V 16A 1CO connection male faston 6.3
Pressure control HD reset automatic refrigeration type HTB-X114
Pressure control HD reset automatic refrigeration type HTB-X114
Thermostat RANCO type K50L3383 capillary pipe 1500mm
Thermostat RANCO type K50L3383 capillary pipe 1500mm
Displaying 1 to 20 (of 71 products)
