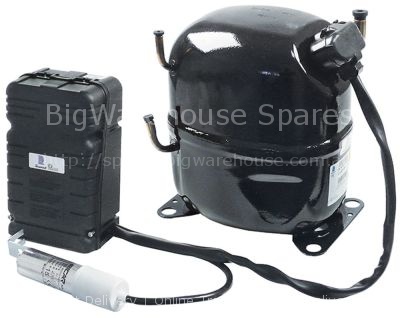

Compressor coolant R404A type CAJ9510Z 220-240V 50Hz HMBP fully
Timer CDC 11904 engines 1 chambers 4 operation time 18min 230V 5
Thermostat RANCO type K22L1082 capillary pipe 2000mm
Timer CDC 11904 engines 1 chambers 4 operation time 10min 230V
TIMER 11904 F1 4 CAMS 12 MINUTES T11 Voltage Medium Cubes
Pressure control HD reset automatic refrigeration type HTB-X114
O-ring silicone thickness 1,78mm ID ø 17,17mm Qty 1 pcs
Fan wheel sucking ø 254mm fan wheel mounting 25,4mm blade angle

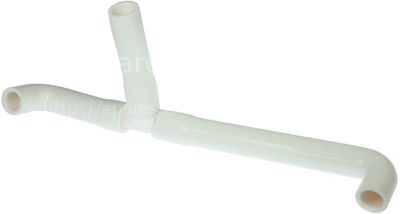

Formed hose U-shape for ice-cube maker ID ø 18/27mm ED ø 25/32mm
Gasket silicone ED ø 36mm ID ø 23,5mm thickness 3mm Qty 1 pcs
Curtain for ice maker W 720mm H 190mm with holder shaft length 7
Overflow pipe tube ø 20,5mm pipe length 88,6mm
Solenoid valve single angled 230VAC inlet 3/4" outlet 11,5mm inp
Timer CDC 11904 engines 1 chambers 4 operation time 15min 115V 6
