Parts List

Exploded diagrams, Schematics and other documents

Click on an image to enlarge the exploded view

G7F2ME+A2 Ver:200003- Parts List

  • Version
Burner ring 3,6kW for burner cap ø 120mm

Burner ring 3,6kW for burner cap ø 120mm

Ref: Pg:1 Item:003

Burner ring 3,6kW for burner cap ø 120mm

more info
Battery holder for battery type AA 15V mounting 22mm connecti

Battery holder for battery type AA 15V mounting 22mm connecti

Ref: Pg:1 Item:023

Battery holder for battery type AA 15V mounting 22mm connecti

more info
Knob ø 72mm

Knob ø 72mm

Ref: Pg:1 Item:014

Knob ø 72mm

more info
Bracket

Bracket

Ref: Pg:1 Item:013

Bracket

more info
Nut thread M6x0.75 H 26mm WS 8 brass Qty 1 pcs type SEF 2

Nut thread M6x0.75 H 26mm WS 8 brass Qty 1 pcs type SEF 2

Ref: Pg:1 Item:008

Nut thread M6x0.75 H 26mm WS 8 brass Qty 1 pcs type SEF 2

more info
Burner lower part 3/3.6kW for burner cap ø 90/120mm

Burner lower part 3/3.6kW for burner cap ø 90/120mm

Ref: Pg:1 Item:010

Burner lower part 3/3.6kW for burner cap ø 90/120mm

more info

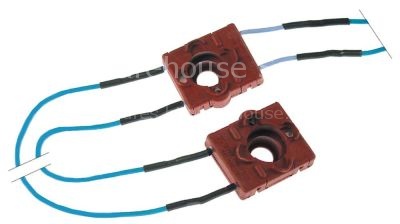

Ignition switch double for gas taps Sabaf

Ignition switch double for gas taps Sabaf

Ref: Pg:1 Item:017

Ignition switch double for gas taps Sabaf

more info
Equipment foot

Equipment foot

Ref: Pg:1 Item:016

Equipment foot

more info
Burner cap 3kW ø 90mm

Burner cap 3kW ø 90mm

Ref: Pg:1 Item:005

Burner cap 3kW ø 90mm

more info
Disc for ignition switch ID ø 8,8mm ED ø 12,5mm

Disc for ignition switch ID ø 8,8mm ED ø 12,5mm

Ref: Pg:1 Item:018

Disc for ignition switch ID ø 8,8mm ED ø 12,5mm

more info
Thermocouple with two-conductors L 750mm M6x0.75 F 7.7mm F 6.3mm

Thermocouple with two-conductors L 750mm M6x0.75 F 7.7mm F 6.3mm

Ref: Pg:1 Item:009

Thermocouple with two-conductors L 750mm M6x0.75 F 7.7mm F 6.3mm

more info
Burner ring 3kW for burner cap ø 90mm

Burner ring 3kW for burner cap ø 90mm

Ref: Pg:1 Item:006

Burner ring 3kW for burner cap ø 90mm

more info
Gas tap SABAF type 10 gas inlet pipe flange ø16mm bypass nozzle

Gas tap SABAF type 10 gas inlet pipe flange ø16mm bypass nozzle

Ref: Pg:1 Item:012

Gas tap SABAF type 10 gas inlet pipe flange ø16mm bypass nozzle

more info
Burner head 3,6kW for burner cap ø 120mm

Burner head 3,6kW for burner cap ø 120mm

Ref: Pg:1 Item:004

Burner head 3,6kW for burner cap ø 120mm

more info
Burner head 3kW for burner cap ø 90mm

Burner head 3kW for burner cap ø 90mm

Ref: Pg:1 Item:007

Burner head 3kW for burner cap ø 90mm

more info
Burner cap 3,6kW ø 120mm

Burner cap 3,6kW ø 120mm

Ref: Pg:1 Item:002

Burner cap 3,6kW ø 120mm

more info
Knob dial plate gas tap without ignition flame ED ø 63mm ID ø 45

Knob dial plate gas tap without ignition flame ED ø 63mm ID ø 45

Ref: Pg:1 Item:015

Knob dial plate gas tap without ignition flame ED ø 63mm ID ø 45

more info
Ignition electrode D1 ø 6mm cable length 700mm connection F 2.8x

Ignition electrode D1 ø 6mm cable length 700mm connection F 2.8x

Ref: Pg:1 Item:020

Ignition electrode D1 ø 6mm cable length 700mm connection F 2.8x

more info
Gas injector thread M6x0.75 WS 7 bore ø 0,85mm

Gas injector thread M6x0.75 WS 7 bore ø 0,85mm

Ref: Pg:1 Item:011

Gas injector thread M6x0.75 WS 7 bore ø 0,85mm

more info
Ignition cable cable length 400mm connection F2.8mm / F6.3mm

Ignition cable cable length 400mm connection F2.8mm / F6.3mm

Ref: Pg:1 Item:021

Ignition cable cable length 400mm connection F2.8mm / F6.3mm

more info
Displaying 1 to 20 (of 23 products)
