ELT4B Ver:200003- Parts List

  • Version
Indicator light ø 10mm green 230V connection male faston 6.3mm Q

Indicator light ø 10mm green 230V connection male faston 6.3mm Q

Ref: Pg:1 Item:008

Indicator light ø 10mm green 230V connection male faston 6.3mm Q

more info
Indicator light 10mm yellow 230V connection male faston 6.3mm

Indicator light 10mm yellow 230V connection male faston 6.3mm

Ref: Pg:1 Item:007

Indicator light 10mm yellow 230V connection male faston 6.3mm

more info
Cable gland

Cable gland

Ref: Pg:1 Item:015

Cable gland

more info
Pull handle L 110mm H 36mm mounting distance 88mm hole ø 4mm

Pull handle L 110mm H 36mm mounting distance 88mm hole ø 4mm

Ref: Pg:1 Item:005

Pull handle L 110mm H 36mm mounting distance 88mm hole ø 4mm

more info
Probe clip for pipe ø 8mm for probe ø 4mm

Probe clip for pipe ø 8mm for probe ø 4mm

Ref: Pg:1 Item:014

Probe clip for pipe ø 8mm for probe ø 4mm

more info
Push button mounting measurements ø11mm black 2NO 250V 16A conne

Push button mounting measurements ø11mm black 2NO 250V 16A conne

Ref: Pg:1 Item:013

Push button mounting measurements ø11mm black 2NO 250V 16A conne

more info
Knob switch zero mark ø 40mm shaft ø 6x4.6mm shaft flat right bl

Knob switch zero mark ø 40mm shaft ø 6x4.6mm shaft flat right bl

Ref: Pg:1 Item:012

Knob switch zero mark ø 40mm shaft ø 6x4.6mm shaft flat right bl

more info
Thermostat t.max. 185°C temperature range 97-185°C 1-pole 1NO 16

Thermostat t.max. 185°C temperature range 97-185°C 1-pole 1NO 16

Ref: Pg:1 Item:011

Thermostat t.max. 185°C temperature range 97-185°C 1-pole 1NO 16

more info
Safety thermostat switch-off temp. 230°C 1-pole 16A probe ø 3mm

Safety thermostat switch-off temp. 230°C 1-pole 16A probe ø 3mm

Ref: Pg:1 Item:010

Safety thermostat switch-off temp. 230°C 1-pole 16A probe ø 3mm

more info
Fryer basket L1 255mm W1 135mm H1 100mm chrome-plated steel

Fryer basket L1 255mm W1 135mm H1 100mm chrome-plated steel

Ref: Pg:1 Item:003

Fryer basket L1 255mm W1 135mm H1 100mm chrome-plated steel

more info

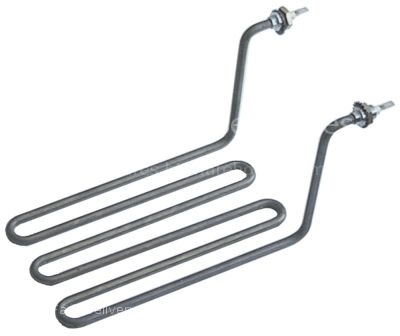

Heating element 1800W 230V heating circuits 1 L 270mm W 137mm H

Heating element 1800W 230V heating circuits 1 L 270mm W 137mm H

Ref: Pg:1 Item:009

Heating element 1800W 230V heating circuits 1 L 270mm W 137mm H

more info
FOOT

FOOT

Ref: Pg:1 Item:001

FOOT

more info
ADHESIVE CONTROL PANEL

ADHESIVE CONTROL PANEL

Ref: Pg:1 Item:006

ADHESIVE CONTROL PANEL

more info
REMOVABLE WELL

REMOVABLE WELL

Ref: Pg:1 Item:002

REMOVABLE WELL

more info
BASKET COVER ELT 4

BASKET COVER ELT 4

Ref: Pg:1 Item:004

BASKET COVER ELT 4

more info
