Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
Oven lamp glass thr.ø 33,5mm ø 42mm hard glas temp.-resist. 350°
Light bulb t.max. 300°C socket E14 15W 230V ø 22mm L 47mm lens L
Solenoid valve single straight 230VAC inlet 34
Timer M2 with bell 2-pole operation time 120min impulse mechanic
Hot air fan 220-240V 32 W 5060Hz L1 60 mm L2 10 mm L3 25 mm L4
Indicator light 10mm yellow 230V connection male faston 6.3mm
Handle latch L 150mm mounting distance 133mm non lockable heated

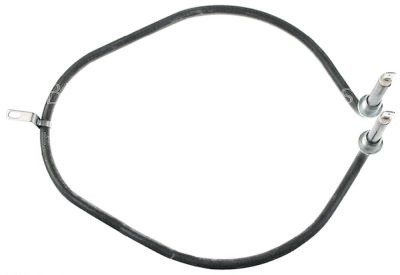

Heating element 3300W 240V heating circuits 1 ID ø 185mm ED ø 20
Alarm device 9-15VDC H 14,5mm wall-mounted version 75dB protecti
Temperature probe Pt100 cable Vetrotex probe -200 up to +600°C c
Power terminal block 6-pole max. 40A max 450V connection ø6mm² /
Indicator light ø 10mm green 230V connection male faston 6.3mm Q
Microswitch with plunger thread M10x0.75 thread L 14mm 250V 10A
Transformer primary 230VAC secondary 12VAC 10VA secondary 0,8A c
Cam switch 4 operating positions 2NO/2CO sequence 0-1-2-3 16A sh
Thermostat t.max. 269°C temperature range 55-269°C 1-pole 1CO 16
Energy regulator 230V 13A single-circuit turn direction right sh
Latch gear opening to the right shaft intake ø 8x8mm L 170mm W 4
