XVC2015G XVC2015G Ver:201009- Parts List
Gasket for fan motor ID ø 10mm ED ø 40mm thickness 0,8mm
Gasket for fan motor ID ø 10mm ED ø 40mm thickness 0,8mm
Power terminal block 7-pole max. 40A max 450V connection M5/male
Power terminal block 7-pole max. 40A max 450V connection M5/male
Fan wheel D1 ø 196mm H1 81mm blades 39 D2 ø 10mm D3 ø 10mm H2 18
Fan wheel D1 ø 196mm H1 81mm blades 39 D2 ø 10mm D3 ø 10mm H2 18
Bracket for core temperature probe L 30mm W 30mm H 15mm SS 18/10
Bracket for core temperature probe L 30mm W 30mm H 15mm SS 18/10
Hinge block mounting pos. lower UNOX L 28mm W 31mm
Hinge block mounting pos. lower UNOX L 28mm W 31mm
Door catch H 30mm right L 75mm W 46mm mounting distance 63mm sui
Door catch H 30mm right L 75mm W 46mm mounting distance 63mm sui
Ignition electrode flange length 64mm flange width 23mm D1 ø 9,4
Ignition electrode flange length 64mm flange width 23mm D1 ø 9,4
Ignition box HONEYWELL type S4565C 3116B electrodes 2 safety ti
Ignition box HONEYWELL type S4565C 3116B electrodes 2 safety ti

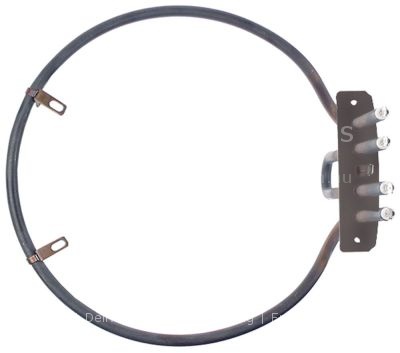

Heating element 147/1300W 105/230V heating circuits 2 ID ø 220mm
Heating element 147/1300W 105/230V heating circuits 2 ID ø 220mm
Core temperature probe Pt100 cable PTFE probe -40 up to +250°C c
Core temperature probe Pt100 cable PTFE probe -40 up to +250°C c
Displaying 21 to 40 (of 133 products)
