AF100 Ver:20011001- Parts List
Screw thread 7/16" thread L 25mm SS WS 16 head thickness 7mm
Screw thread 7/16" thread L 25mm SS WS 16 head thickness 7mm
Door for ice-cube maker W 505mm H 270mm thickness 21mm
Door for ice-cube maker W 505mm H 270mm thickness 21mm
Rubber protection for ball bearing H 11,5mm ID ø 31,5mm ED ø 36m
Rubber protection for ball bearing H 11,5mm ID ø 31,5mm ED ø 36m
Machine lubricant food-safe -50 up to +160°C approval NSF 380g
Machine lubricant food-safe -50 up to +160°C approval NSF 380g
Shaft seal ID ø 11,91mm ED ø 18,24mm thickness 5mm
Shaft seal ID ø 11,91mm ED ø 18,24mm thickness 5mm
Operating capacitor capacity 4µF 450V tolerance 5% 50/60Hz
Operating capacitor capacity 4µF 450V tolerance 5% 50/60Hz
Operating capacitor capacity 4µF 450V tolerance 5% 50/60Hz
Operating capacitor capacity 4µF 450V tolerance 5% 50/60Hz
Plain washer ID ø 8,5mm ED ø 14mm thickness 0,8mm steel Qty 1 pc
Plain washer ID ø 8,5mm ED ø 14mm thickness 0,8mm steel Qty 1 pc

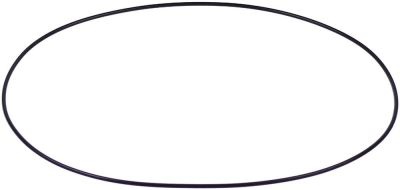

O-ring EPDM thickness 2mm ID ø 171mm Qty 1 pcs
O-ring EPDM thickness 2mm ID ø 171mm Qty 1 pcs
Plain washer ID ø 8,5mm ED ø 14mm thickness 0,3mm steel Qty 1 pc
Plain washer ID ø 8,5mm ED ø 14mm thickness 0,3mm steel Qty 1 pc
Cable for level electrode cable length 1800mm
Cable for level electrode cable length 1800mm
Rotor ø 65mm shaft ø 13mm shaft length 180mm for flake ice maker
Rotor ø 65mm shaft ø 13mm shaft length 180mm for flake ice maker
Displaying 61 to 80 (of 145 products)
