Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
Impellor set ø 72 mm H 18 mm shaft ø 11 mm shaft length 32 mm se
Drain hose DN24 L 1500mm straight ø inside 24mm straight ext. ø
Door hinge with bolt mounting pos. left/right ø 8mm L 72mm
Opposite support for wash arm support mounting pos. lower ø 82mm
Rinse arm support mounting pos. upper H 21mm L 45mm hose ø 13mm
Magnetic switch L 40mm W 13mm 1NO 250V 0,04A P max. 10W connecti
Overflow stock L 48mm seat ø 25mm for overflow pipe
Push switch mounting measurements 30x22mm oval white 2NO 250V 16
Solenoid valve single straight 230VAC inlet 3/4" outlet 11,5mm i

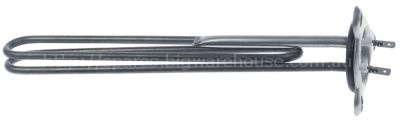

Heating element 2000W 230V mounting ø 38,5mm heating circuits 1
Wash arm mounting pos. upper wash arm L 355mm rinse arm L 365mm
Momentary push switch mounting measurements 30x22mm oval white
Timer CDC 11803F1 engines 1 chambers 3 operation time 120s 230V
Pump inlet ø 28mm outlet ø 26mm type 2211.1610 220-240V 50Hz 1 p
Rinse arm mounting pos. upper L 360mm nozzles 4 mounting ø 12mm
