ECO STAR 530F Parts List

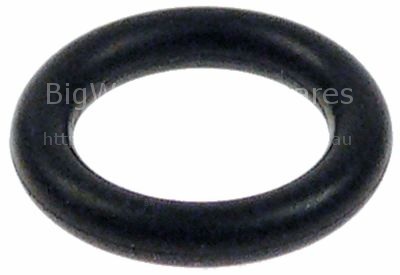

O-ring EPDM thickness 2mm ID ø 16mm Qty 1 pcs
O-ring EPDM thickness 2mm ID ø 16mm Qty 1 pcs
Tension spring ø 14mm total length 80mm wire gauge ø 1,1mm
Tension spring ø 14mm total length 80mm wire gauge ø 1,1mm
Operating capacitor capacity 12,5µF 450V tolerance 5% ambient t
Operating capacitor capacity 12,5µF 450V tolerance 5% ambient t
Safety thermostat switch-off temp. 120°C 3-pole 20A probe ø 6mm
Safety thermostat switch-off temp. 120°C 3-pole 20A probe ø 6mm
Thumb screw thread M10 thread L 10mm ø 22mm H 4,5mm SS
Thumb screw thread M10 thread L 10mm ø 22mm H 4,5mm SS

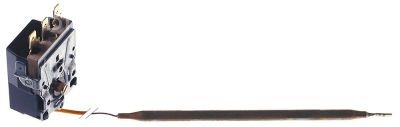

Thermostat t.max. 95°C temperature range 0-95°C 1-pole 1CO 16A p
Thermostat t.max. 95°C temperature range 0-95°C 1-pole 1CO 16A p
Rinse arm shaft centring star mounting pos. upper
Rinse arm shaft centring star mounting pos. upper

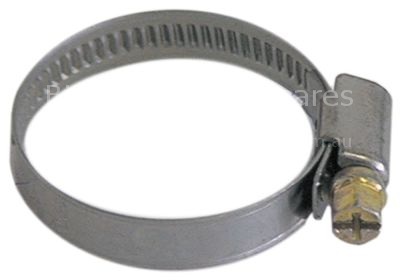

Hose clamp ø 12-20mm width 9mm Qty 10 pcs DIN 3017
Hose clamp ø 12-20mm width 9mm Qty 10 pcs DIN 3017

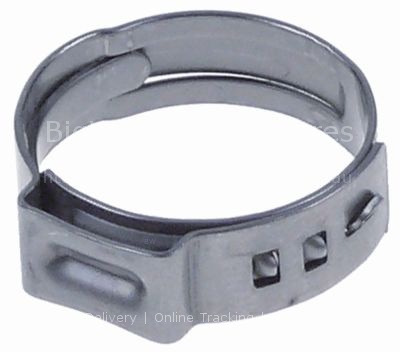

One ear clamp ø 16.6-19.8mm width 7mm strip thickness 0,6mm Qty
One ear clamp ø 16.6-19.8mm width 7mm strip thickness 0,6mm Qty

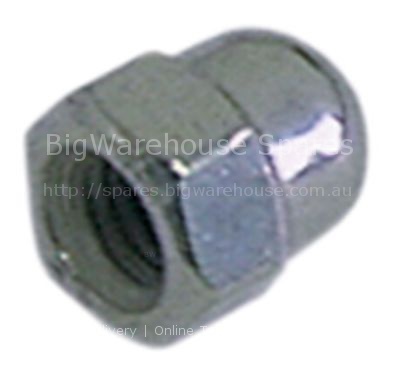

Cap nuts thread M4 WS 7 SS Qty 20 pcs DIN/ISO DIN 1587
Cap nuts thread M4 WS 7 SS Qty 20 pcs DIN/ISO DIN 1587

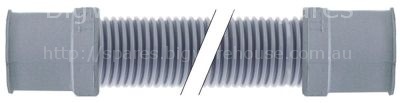

Drain hose DN19 L 2500mm A int. ø 19mm A ext. ø 24mm B int. ø 21
Drain hose DN19 L 2500mm A int. ø 19mm A ext. ø 24mm B int. ø 21
