Door hinge door bearing, left mounting pos. left
Door hinge door bearing, right mounting pos. right

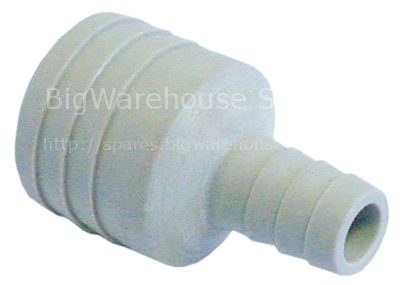

Reducer MÜLLER type MR19 flow rate 5l/min ø 19mm mounting measur
Tension spring ø 14mm total length 80mm wire gauge ø 1,1mm
Temperature probe NTC 2,2kOhm cable PVC probe -40 up to +110°C c
Operating capacitor capacity 6,3µF 450V tolerance 5% 50Hz
Pressure hose ext. ø 38 D1 ø 30mm D2 ø 30mm L 1300mm temp.-resis

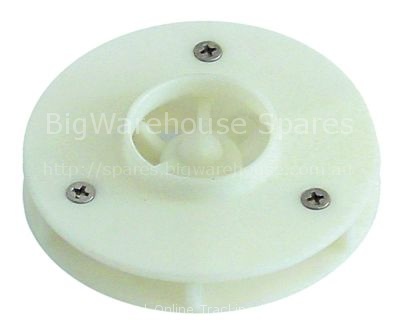

Impellor ø 80 mm H 19 mm M7R pump type type D1
Pump inlet ø 33mm outlet ø 30mm type B221A1500 230V 50Hz 1 phase
