FIF0004 Ver:200803- Parts List

  • Version

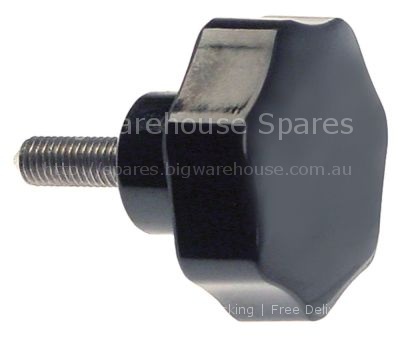

Locking screw thread M10 thread L 30mm handle ø 60mm plastic

Locking screw thread M10 thread L 30mm handle ø 60mm plastic

Ref: Pg:3 Item:049

Locking screw thread M10 thread L 30mm handle ø 60mm plastic

more info
Auger model 12 ø 53mm L 140mm aluminium with spindle ENTERPRISE

Auger model 12 ø 53mm L 140mm aluminium with spindle ENTERPRISE

Ref: Pg:3 Item:053

Auger model 12 ø 53mm L 140mm aluminium with spindle ENTERPRISE

more info
Grating cylinder ø 79mm L 155mm ID ø 25mm stainless steel Mod.12

Grating cylinder ø 79mm L 155mm ID ø 25mm stainless steel Mod.12

Ref: Pg:3 Item:006B

Grating cylinder ø 79mm L 155mm ID ø 25mm stainless steel Mod.12

more info
Operating capacitor capacity 16µF 425V tolerance 5% 50/60Hz

Operating capacitor capacity 16µF 425V tolerance 5% 50/60Hz

Ref: Pg:3 Item:070

Operating capacitor capacity 16µF 425V tolerance 5% 50/60Hz

more info
Screw CYLINDER HEAD SCREW M4x8

Screw CYLINDER HEAD SCREW M4x8

Ref: Pg:3 Item:001

Screw CYLINDER HEAD SCREW M4x8

more info
Screw CYLINDER HEAD SCREW M4x8

Screw CYLINDER HEAD SCREW M4x8

Ref: Pg:3 Item:065

Screw CYLINDER HEAD SCREW M4x8

more info
O-ring EPDM thickness 2mm ID ø 164,5mm Qty 1 pcs

O-ring EPDM thickness 2mm ID ø 164,5mm Qty 1 pcs

Ref: Pg:3 Item:038

O-ring EPDM thickness 2mm ID ø 164,5mm Qty 1 pcs

more info
Stator 230V 50Hz 4-pole 1400rpm 1 phase ø 150mm ID ø 90mm H 70mm

Stator 230V 50Hz 4-pole 1400rpm 1 phase ø 150mm ID ø 90mm H 70mm

Ref: Pg:3 Item:028

Stator 230V 50Hz 4-pole 1400rpm 1 phase ø 150mm ID ø 90mm H 70mm

more info
Screw

Screw

Ref: Pg:3 Item:052

Screw

more info
Auger model 12 ø 53mm L 135mm stainless steel with spindle ENTER

Auger model 12 ø 53mm L 135mm stainless steel with spindle ENTER

Ref: Pg:3 Item:053B

Auger model 12 ø 53mm L 135mm stainless steel with spindle ENTER

more info
Washer

Washer

Ref: Pg:3 Item:004

Washer

more info
Guard

Guard

Ref: Pg:3 Item:020

Guard

more info
Base for mincer

Base for mincer

Ref: Pg:3 Item:061

Base for mincer

more info
Momentary push switch mounting measurements ø22mm black/white 1N

Momentary push switch mounting measurements ø22mm black/white 1N

Ref: Pg:3 Item:059

Momentary push switch mounting measurements ø22mm black/white 1N

more info
Gear wheel ø 25mm shaft intake ø 10mm teeth 13 tooth width 20mm

Gear wheel ø 25mm shaft intake ø 10mm teeth 13 tooth width 20mm

Ref: Pg:3 Item:036

Gear wheel ø 25mm shaft intake ø 10mm teeth 13 tooth width 20mm

more info
Meat collecting tray L 255mm W 195mm H 50mm

Meat collecting tray L 255mm W 195mm H 50mm

Ref: Pg:3 Item:058

Meat collecting tray L 255mm W 195mm H 50mm

more info
Shaft seal ID ø 25mm ED ø 40mm thickness 7mm

Shaft seal ID ø 25mm ED ø 40mm thickness 7mm

Ref: Pg:3 Item:033

Shaft seal ID ø 25mm ED ø 40mm thickness 7mm

more info
Shaft seal ID ø 25mm ED ø 40mm thickness 7mm

Shaft seal ID ø 25mm ED ø 40mm thickness 7mm

Ref: Pg:3 Item:043

Shaft seal ID ø 25mm ED ø 40mm thickness 7mm

more info
Gear wheel ø 64mm shaft intake ø 16mm teeth 39 tooth width 13mm

Gear wheel ø 64mm shaft intake ø 16mm teeth 39 tooth width 13mm

Ref: Pg:3 Item:039

Gear wheel ø 64mm shaft intake ø 16mm teeth 39 tooth width 13mm

more info
Deep-groove ball bearing type 6203-Z shaft ø 17mm ED ø 40mm W 12

Deep-groove ball bearing type 6203-Z shaft ø 17mm ED ø 40mm W 12

Ref: Pg:3 Item:040

Deep-groove ball bearing type 6203-Z shaft ø 17mm ED ø 40mm W 12

more info
Displaying 21 to 40 (of 96 products)
