CSM10E Ver:199605- Parts List
Push button mounting measurements ø22mm illuminated red
Push button mounting measurements ø22mm illuminated red
Push button mounting measurements ø22mm illuminated red
Push button mounting measurements ø22mm illuminated red
Thermostat t.max. 65°C temperature range fixed 65°C 1-pole 1CO 1
Thermostat t.max. 65°C temperature range fixed 65°C 1-pole 1CO 1
Door catch L 58mm W 20mm H 35mm mounting distance 42mm chrome-pl
Door catch L 58mm W 20mm H 35mm mounting distance 42mm chrome-pl
Timer FIBER P25 engines 1 chambers 1 operation time 60s 24V manu
Timer FIBER P25 engines 1 chambers 1 operation time 60s 24V manu
Transformer primary 230/400V secondary 12V 160VA
Transformer primary 230/400V secondary 12V 160VA

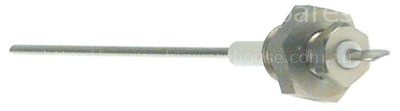

Level electrode 1/4" total length 165mm probe L 138mm insulated
Level electrode 1/4" total length 165mm probe L 138mm insulated
Level electrode 1/4" total length 147mm probe L 120mm insulated
Level electrode 1/4" total length 147mm probe L 120mm insulated
Door seal profile 2440 W 645mm L 740mm external size Qty 1
Door seal profile 2440 W 645mm L 740mm external size Qty 1
Fan wheel D1 ø 330mm H1 110mm blades 12 D2 ø 12mm D3 ø 24mm H2 4
Fan wheel D1 ø 330mm H1 110mm blades 12 D2 ø 12mm D3 ø 24mm H2 4
Level electrode 1/4" total length 150mm probe L 124mm insulated
Level electrode 1/4" total length 150mm probe L 124mm insulated
Fan motor 230/400V 3 phase 50Hz 0,37kW 1350rpm speeds 1 L1 170mm
Fan motor 230/400V 3 phase 50Hz 0,37kW 1350rpm speeds 1 L1 170mm
