CSM201G Ver:199605- Parts List
Thermostat t.max. 65°C temperature range fixed 65°C 1-pole 1CO 1
Thermostat t.max. 65°C temperature range fixed 65°C 1-pole 1CO 1
Ignition electrode flange length 38mm flange width 17mm D1 ø 9,5
Ignition electrode flange length 38mm flange width 17mm D1 ø 9,5
Transformer primary 230/400V secondary 12V 160VA
Transformer primary 230/400V secondary 12V 160VA
Level electrode 1/4" total length 186mm probe L 158mm insulated
Level electrode 1/4" total length 186mm probe L 158mm insulated
Level electrode 1/4" total length 186mm probe L 158mm insulated
Level electrode 1/4" total length 186mm probe L 158mm insulated
Fan wheel D1 ø 350mm H1 150mm blades 16 D2 ø 12mm D3 ø 23mm H2 4
Fan wheel D1 ø 350mm H1 150mm blades 16 D2 ø 12mm D3 ø 23mm H2 4
Level electrode 1/4" total length 187mm probe L 160mm insulated
Level electrode 1/4" total length 187mm probe L 160mm insulated
Level electrode 1/4" total length 162mm probe L 134mm insulated
Level electrode 1/4" total length 162mm probe L 134mm insulated
Gas valve SIT series 230V 50Hz gas inlet 1/2" gas outlet 1/2" p
Gas valve SIT series 230V 50Hz gas inlet 1/2" gas outlet 1/2" p
Operating capacitor capacity 10µF 400V tolerance 5% ambient tem
Operating capacitor capacity 10µF 400V tolerance 5% ambient tem
Plug with cable L 1000mm suitable for NOVASIT
Plug with cable L 1000mm suitable for NOVASIT
Bar burner ø 50mm L 560mm flange width 52mm flange ø 75mm with b
Bar burner ø 50mm L 560mm flange width 52mm flange ø 75mm with b
Fan motor 230V 1 phase 50Hz 0,37kW 1350rpm speeds 1 L1 170mm L2
Fan motor 230V 1 phase 50Hz 0,37kW 1350rpm speeds 1 L1 170mm L2
Level electrode 1/4" total length 210mm probe L 184mm insulated
Level electrode 1/4" total length 210mm probe L 184mm insulated
Level electrode 1/4" total length 210mm probe L 184mm insulated
Level electrode 1/4" total length 210mm probe L 184mm insulated

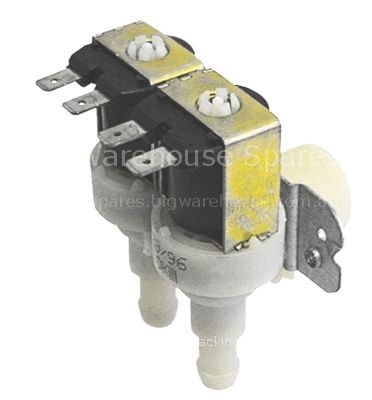

Solenoid valve double angled 24VAC inlet 3/4" outlet 11.5mm DN10
Solenoid valve double angled 24VAC inlet 3/4" outlet 11.5mm DN10
Bar burner ø 50mm L 574mm flange width 52mm flange ø 75mm combi-
Bar burner ø 50mm L 574mm flange width 52mm flange ø 75mm combi-
