Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view

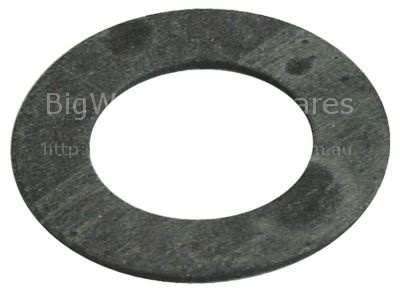

Flat gasket rubber ED ø 25mm ID ø 16mm thickness 2mm Qty 1 pcs
Pump inlet 28mm outlet 28mm type C904 230V 50Hz 1 phase 015
Drain hose DN25 L 1500mm straight ø inside 25mm straight ext. ø
O-ring EPDM thickness 1,78mm ID ø 7,66mm Qty 1 pcs
Hexagonal nut thread M5 H 4mm WS 8 SS DIN/ISO DIN 934 / ISO 4032
Formed hose end piece A ext. ø 37mm AD2 ø 28mm warewashing L-sha
Handle rail L 310mm W 25mm H 30mm grey hole distance 180mm Qty 1
