SAEB101 Ver:201406-Vers2 Parts List

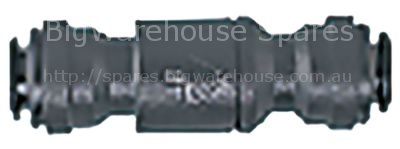

Non-return valve John Guest pipe connection ø10mm - ø10mm
Non-return valve John Guest pipe connection ø10mm - ø10mm

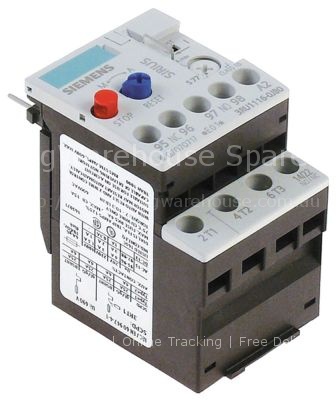

Overload switch setting range 1.4-2.0A connection screw type 3RU
Overload switch setting range 1.4-2.0A connection screw type 3RU
Core temperature probe thermocouple K (NiCr-Ni) cable PTFE probe
Core temperature probe thermocouple K (NiCr-Ni) cable PTFE probe

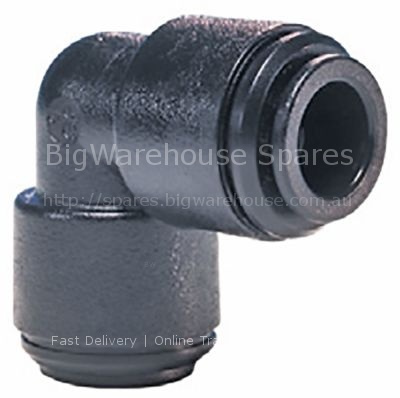

Push-in fitting John Guest angled pipe connection ø10mm - ø10mm
Push-in fitting John Guest angled pipe connection ø10mm - ø10mm

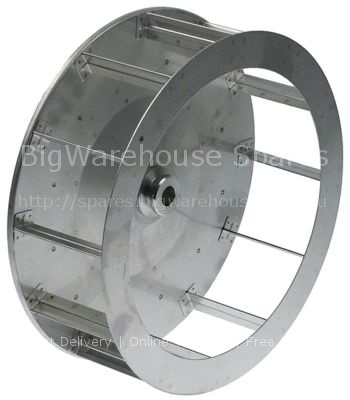

Fan wheel D1 ø 350mm H1 114mm blades 12 D2 ø 19,5mm D3 ø 23mm H2
Fan wheel D1 ø 350mm H1 114mm blades 12 D2 ø 19,5mm D3 ø 23mm H2

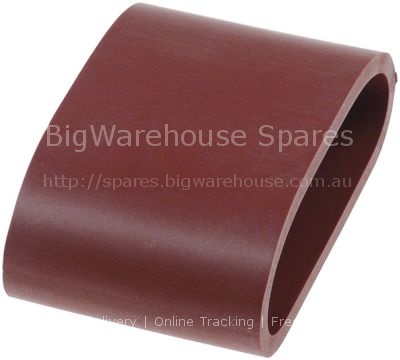

Hose ID 50mm ED 58mm L 50mm silicone Qty 1 for combi-steamer
Hose ID 50mm ED 58mm L 50mm silicone Qty 1 for combi-steamer

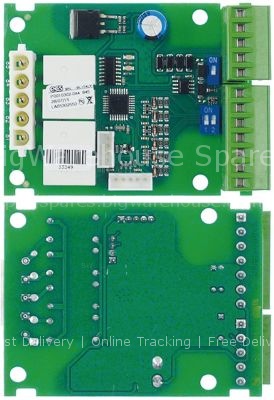

PCB combi-steamer L 90mm W 67mm suitable for LAINOX
PCB combi-steamer L 90mm W 67mm suitable for LAINOX

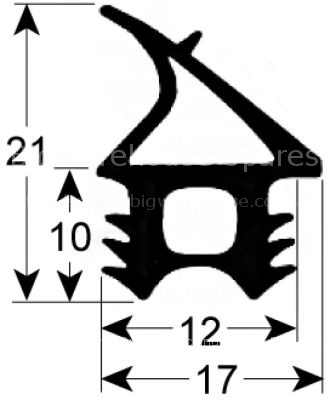

Door seal profile 2761 W 46mm L 775mm external size Qty 1 suitab
Door seal profile 2761 W 46mm L 775mm external size Qty 1 suitab

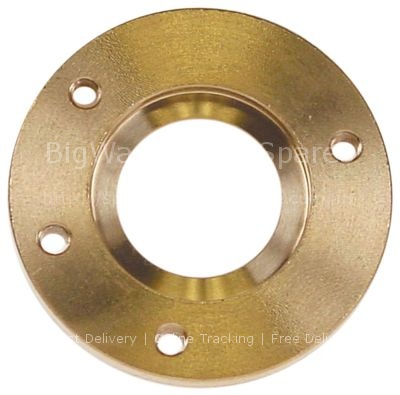

Counterflange for fan motor ED ø 60mm int. ø 1 34mm int. ø 2 25m
Counterflange for fan motor ED ø 60mm int. ø 1 34mm int. ø 2 25m
Level electrode M14x1.25 total length 220mm probe L 194mm insula
Level electrode M14x1.25 total length 220mm probe L 194mm insula
Heating element 7500W 277V L 370mm W 40mm H 35mm heating circuit
Heating element 7500W 277V L 370mm W 40mm H 35mm heating circuit

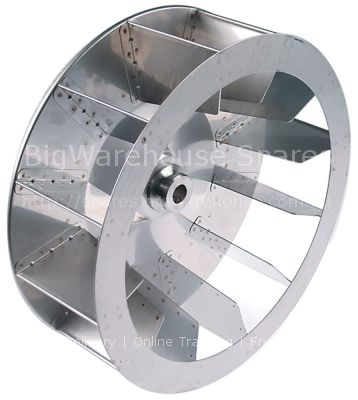

Fan wheel blades 12 D1 ø 350mm D2 ø 19,5mm D3 ø 23mm H1 118mm H2
Fan wheel blades 12 D1 ø 350mm D2 ø 19,5mm D3 ø 23mm H1 118mm H2

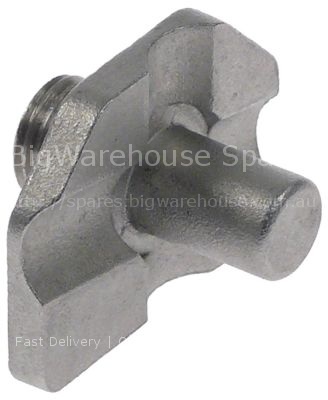

Door bolt mounting pos. bottom left thread M12 bolt 15mm bolt ø
Door bolt mounting pos. bottom left thread M12 bolt 15mm bolt ø

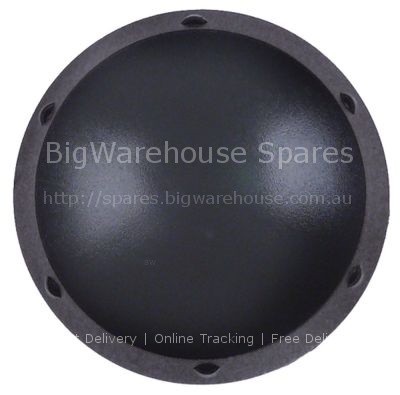

Knob ø 42mm shaft ø 6x4.6mm shaft flat universal
Knob ø 42mm shaft ø 6x4.6mm shaft flat universal

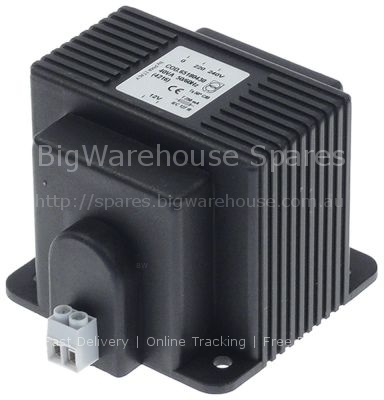

Transformer primary 230VAC secondary 12VAC 40VA secondary 3,2A H
Transformer primary 230VAC secondary 12VAC 40VA secondary 3,2A H

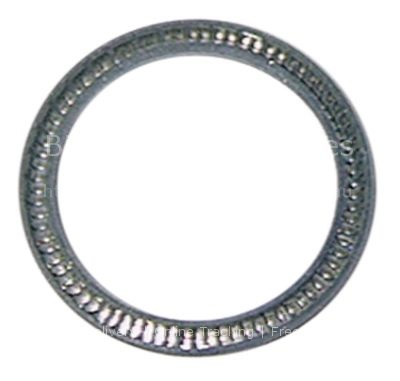

Shaft sealing ID ø 24mm ED ø 29mm thickness 3mm
Shaft sealing ID ø 24mm ED ø 29mm thickness 3mm

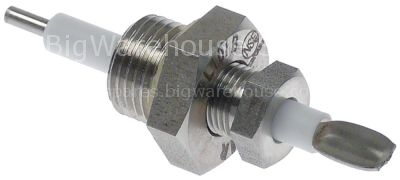

Level electrode M14x1.25 total length 60mm probe L 7,5mm insulat
Level electrode M14x1.25 total length 60mm probe L 7,5mm insulat
Displaying 101 to 120 (of 209 products)
