PE04 Ver:199104- Parts List
Microswitch with plunger mounting distance 22mm thread M12x0.75
Microswitch with plunger mounting distance 22mm thread M12x0.75

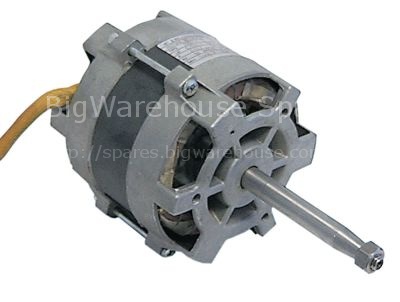

Fan motor 220-240V 1 phase 50Hz 0.37/0.07kW 0.1/0.5HP 1400/2700r
Fan motor 220-240V 1 phase 50Hz 0.37/0.07kW 0.1/0.5HP 1400/2700r
Fine fuse size ø5x20mm 2A slow-acting rated 250V Qty 10 pcs
Fine fuse size ø5x20mm 2A slow-acting rated 250V Qty 10 pcs
Snap lock L 60mm W 15mm H 36mm mounting distance 48/28mm spring
Snap lock L 60mm W 15mm H 36mm mounting distance 48/28mm spring

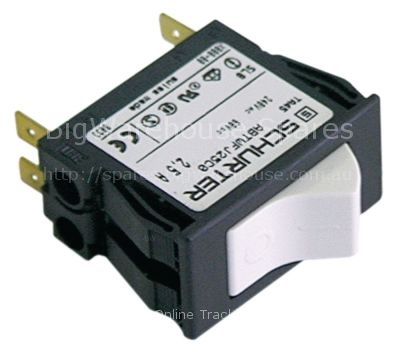

Overload switch drop-away current 2,5A connection male faston 6.
Overload switch drop-away current 2,5A connection male faston 6.
Operating capacitor capacity 20µF 400V tolerance 5% 50/60Hz
Operating capacitor capacity 20µF 400V tolerance 5% 50/60Hz

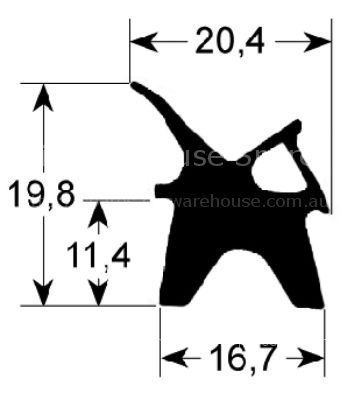

Door seal profile 2410 W 380mm L 632mm external size Qty 1
Door seal profile 2410 W 380mm L 632mm external size Qty 1
Displaying 21 to 40 (of 42 products)
