MME05 Ver:19910601- Parts List
Overload switch drop-away current 0,7A connection male faston 6.
Overload switch drop-away current 0,7A connection male faston 6.
Shaft seal ID ø 14,5mm ED ø 20mm thickness 3mm
Shaft seal ID ø 14,5mm ED ø 20mm thickness 3mm

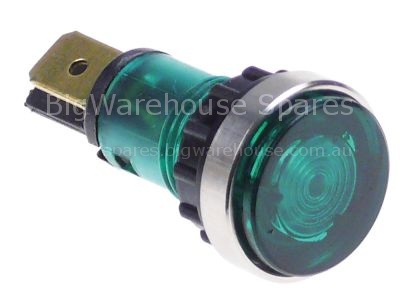

Indicator light ø 12mm 250V green connection male faston 6.3mm
Indicator light ø 12mm 250V green connection male faston 6.3mm
Plain washer ID ø 10,5mm ED ø 20mm thickness 2mm SS Qty 1 pcs DI
Plain washer ID ø 10,5mm ED ø 20mm thickness 2mm SS Qty 1 pcs DI
Fan motor 220-240V 1 phase 50Hz 0.37/0.07kW 0.1/0.5HP 1400/2700r
Fan motor 220-240V 1 phase 50Hz 0.37/0.07kW 0.1/0.5HP 1400/2700r
Fan wheel D1 ø 180mm H1 60mm blades 16 D2 ø 11mm D3 ø 16mm H2 30
Fan wheel D1 ø 180mm H1 60mm blades 16 D2 ø 11mm D3 ø 16mm H2 30

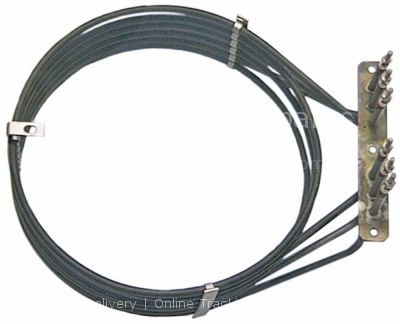

Heating element 6000W 230V heating circuits 3 ID ø 217mm ED ø 23
Heating element 6000W 230V heating circuits 3 ID ø 217mm ED ø 23

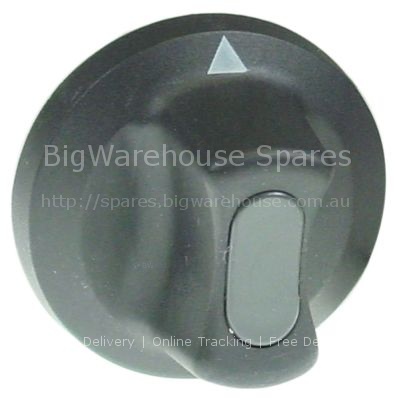

Knob switch zero mark ø 42mm shaft ø 6x4.6mm shaft flat upper bl
Knob switch zero mark ø 42mm shaft ø 6x4.6mm shaft flat upper bl
Overload switch drop-away current 2,5A connection male faston 6.
Overload switch drop-away current 2,5A connection male faston 6.
Transformer primary 230VAC secondary 12VAC 3VA secondary 0,25A H
Transformer primary 230VAC secondary 12VAC 3VA secondary 0,25A H
Door seal profile 2410 W 413mm L 608mm external size Qty 1
Door seal profile 2410 W 413mm L 608mm external size Qty 1
Operating capacitor capacity 20µF 400V tolerance 5% 50/60Hz
Operating capacitor capacity 20µF 400V tolerance 5% 50/60Hz
