CEV026S+KSC004+LM026-Cookmax Ver:201204- Parts List
Buzzer 12VDC connection coded PCB buzzer 20dB
Buzzer 12VDC connection coded PCB buzzer 20dB

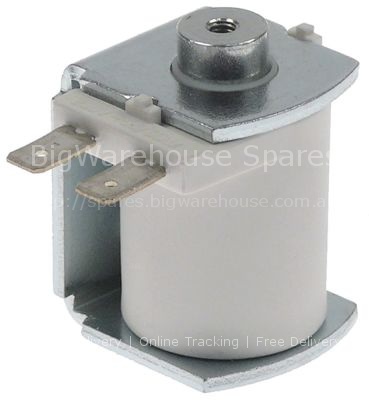

Solenoid coil plug type F6.3x0.8 230V for combi-steamer
Solenoid coil plug type F6.3x0.8 230V for combi-steamer
Hose John Guest thickness 1,5mm LLDPE blue ID ø 7mm ED ø 10mm
Hose John Guest thickness 1,5mm LLDPE blue ID ø 7mm ED ø 10mm
Hose John Guest thickness 1,5mm LLDPE blue ID ø 7mm ED ø 10mm
Hose John Guest thickness 1,5mm LLDPE blue ID ø 7mm ED ø 10mm
Non-return valve John Guest pipe connection ø10mm - ø10mm
Non-return valve John Guest pipe connection ø10mm - ø10mm
O-ring Viton thickness 2mm ID ø 14mm Qty 1 pcs
O-ring Viton thickness 2mm ID ø 14mm Qty 1 pcs
Door handle complete 6303 L 170mm W 53mm H 68mm handle ø 37mm sp
Door handle complete 6303 L 170mm W 53mm H 68mm handle ø 37mm sp
Main PCB combi-steamer REV051/077/1015 L 250mm W 105mm LAINOX
Main PCB combi-steamer REV051/077/1015 L 250mm W 105mm LAINOX
O-ring EPDM thickness 1,78mm ID 17,17mm Qty 1 pcs
O-ring EPDM thickness 1,78mm ID 17,17mm Qty 1 pcs
Hose ID ø 13mm ED ø 23mm L 1mm EPDM blue/white t.max. 120°C for
Hose ID ø 13mm ED ø 23mm L 1mm EPDM blue/white t.max. 120°C for
Encoder cable length 200mm shaft 6x4.6mm shaft L 18mm
Encoder cable length 200mm shaft 6x4.6mm shaft L 18mm

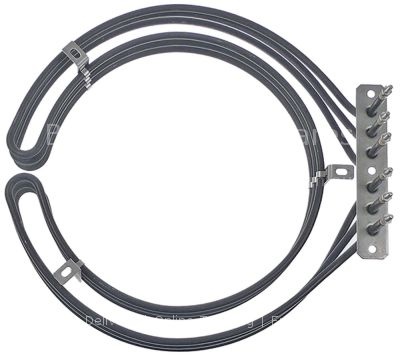

Heating element 5000W 230V heating circuits 3 ID ø 218mm ED ø 28
Heating element 5000W 230V heating circuits 3 ID ø 218mm ED ø 28
Displaying 61 to 80 (of 106 products)
