K100 Ver:0019893-Rev.02 Parts List
Heating element 9000W 230V heating circuits 3 mounting ø 57,5mm
Heating element 9000W 230V heating circuits 3 mounting ø 57,5mm

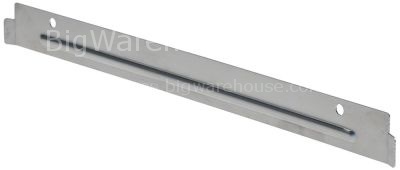

Basket guide mounting pos. left/right L 450mm W 3,5mm H 37,5mm
Basket guide mounting pos. left/right L 450mm W 3,5mm H 37,5mm
Basket guide mounting pos. left/right L 450mm W 3,5mm H 37,5mm
Basket guide mounting pos. left/right L 450mm W 3,5mm H 37,5mm
Power relays FINDER 230VAC 16A 2CO connection F6.3 bracket mount
Power relays FINDER 230VAC 16A 2CO connection F6.3 bracket mount
O-ring EPDM thickness 2,62mm ID ø 9,92mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 9,92mm Qty 1 pcs
Thermostat t.max. 90°C temperature range 30-90°C 1-pole 1CO 16A
Thermostat t.max. 90°C temperature range 30-90°C 1-pole 1CO 16A
Pump inlet ø 60mm outlet ø 48mm type T15 230V 50Hz 1 phase 1,1kW
Pump inlet ø 60mm outlet ø 48mm type T15 230V 50Hz 1 phase 1,1kW
O-ring EPDM thickness 2,62mm ID ø 39,34mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 39,34mm Qty 1 pcs
Bush ID ø 26mm ø 48mm H 11mm mounting pos. lower for wash arm
Bush ID ø 26mm ø 48mm H 11mm mounting pos. lower for wash arm
Flat gasket rubber ED ø 75mm ID ø 58mm thickness 3mm Qty 1 pcs
Flat gasket rubber ED ø 75mm ID ø 58mm thickness 3mm Qty 1 pcs
O-ring EPDM thickness 5,34mm ID ø 47mm Qty 1 pcs
O-ring EPDM thickness 5,34mm ID ø 47mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 34,6mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 34,6mm Qty 1 pcs
Formed hose warewashing L-shape equiv. no. 15033/A mounting pos.
Formed hose warewashing L-shape equiv. no. 15033/A mounting pos.
Push button size 23x23mm green ON-OFF with lens
Push button size 23x23mm green ON-OFF with lens
