Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
Pump cover OLYMPIA inlet ø 60 mm outlet ø 48 mm outlet 2 ø 31 a

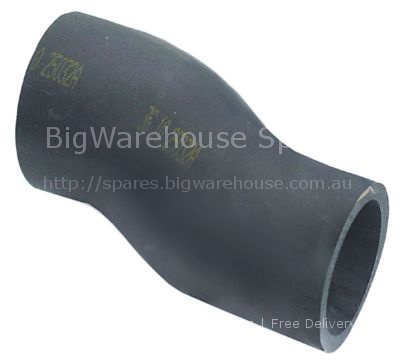

Formed hose S-shape warewashing equiv. no. 25032

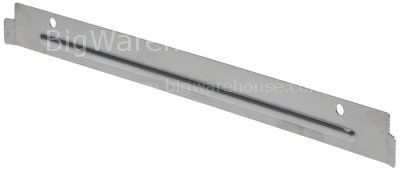

Basket guide mounting pos. left/right L 450mm W 3,5mm H 37,5mm
Power contactor resistive load 20A 230VAC (AC3/400V) 8.4A/4kW ma

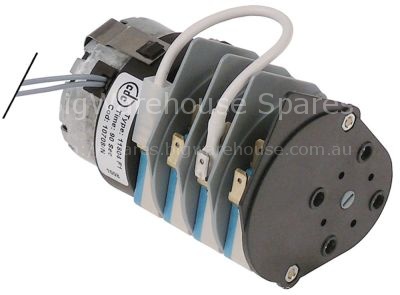

Timer CDC 11804F engines 1 chambers 4 operation time 90s 230V mo
Thermometer mounting measurements 62x11mm +20 up to +120°C capil
Pump cover gasket EPDM thickness 1,78 mm ID ø 145 mm Qty 1 pcs
Bracket for dishwasher rack SS L 25mm ED ø 10mm thread M6
Formed hose warewashing L-shape equiv. no. 15033/A mounting pos.
Lid for back flow restrictor ø 40mm H 14,5mm plastic
Timer CDC 4904F engines 1 chambers 4 operation time 6min 230V 60
Power relays FINDER 230VAC 16A 3CO connection male faston 6.3mm
Thumb screw thread M8x1.25 thread L 8mm ø 30mm H 3mm SS mounting
Formed hose end piece A ext. ø 43mm end piece A int. ø 35mm AD2
