Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
38R K70 Ver:00007406-Rev.00 Parts List
Heating element 4500W 230V heating circuits 3 mounting ø 47,5mm
Heating element 4500W 230V heating circuits 3 mounting ø 47,5mm
Flat gasket rubber ED ø 44mm ID ø 32mm thickness 3mm Qty 1 pcs
Flat gasket rubber ED ø 44mm ID ø 32mm thickness 3mm Qty 1 pcs
Drain fitting with gasket thread 1¼" ID ø 24mm hose ø 32mm
Drain fitting with gasket thread 1¼" ID ø 24mm hose ø 32mm
O-ring EPDM thickness 3,53mm ID ø 42,86mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 42,86mm Qty 1 pcs
Flat gasket rubber ED ø 24mm ID ø 8mm thickness 2mm Qty 1 pcs
Flat gasket rubber ED ø 24mm ID ø 8mm thickness 2mm Qty 1 pcs
Operating capacitor capacity 12,5µF 450V tolerance 5% 60Hz
Operating capacitor capacity 12,5µF 450V tolerance 5% 60Hz
O-ring EPDM thickness 1,78mm ID ø 21,95mm Qty 1 pcs
O-ring EPDM thickness 1,78mm ID ø 21,95mm Qty 1 pcs

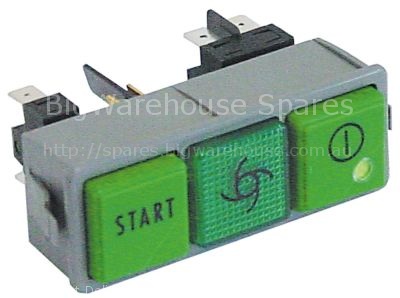

Switch combination mounting measurements 28,5x77,5mm square gree
Switch combination mounting measurements 28,5x77,5mm square gree
Solenoid valve single straight 230VAC inlet 34
Solenoid valve single straight 230VAC inlet 34
Timer CDC 11804F engines 1 chambers 3 operation time 120s 230V 6
Timer CDC 11804F engines 1 chambers 3 operation time 120s 230V 6
Plain washer ID ø 8,6mm ED ø 16mm thickness 1,5mm SS Qty 1 pcs
Plain washer ID ø 8,6mm ED ø 16mm thickness 1,5mm SS Qty 1 pcs
Wash arm bearing mounting pos. lower thread M10 ø 39mm H 36mm
Wash arm bearing mounting pos. lower thread M10 ø 39mm H 36mm
Displaying 41 to 60 (of 114 products)
