Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
38R K70 Ver:00007406-Rev.00 Parts List
Hose clamp ø 12-20mm width 9mm Qty 10 pcs DIN 3017
Hose clamp ø 12-20mm width 9mm Qty 10 pcs DIN 3017
Drain pump inlet ø 30mm outlet ø 22mm 220-240V 22W 50Hz PLASET t
Drain pump inlet ø 30mm outlet ø 22mm 220-240V 22W 50Hz PLASET t
Bush ID ø 26mm ø 48mm H 11mm mounting pos. lower for wash arm
Bush ID ø 26mm ø 48mm H 11mm mounting pos. lower for wash arm
Duct D1 ø 20mm D2 ø 14mm L 17mm int. ø 1 10mm
Duct D1 ø 20mm D2 ø 14mm L 17mm int. ø 1 10mm
Bi-metal safety thermostat hole distance 23,8mm switch-off temp.
Bi-metal safety thermostat hole distance 23,8mm switch-off temp.
Boiler kit ø 140mm L 390mm connection 2 pieces
Boiler kit ø 140mm L 390mm connection 2 pieces
Wash and rinse arm wash arm L 480mm rinse arm L 480mm w. jets 8
Wash and rinse arm wash arm L 480mm rinse arm L 480mm w. jets 8

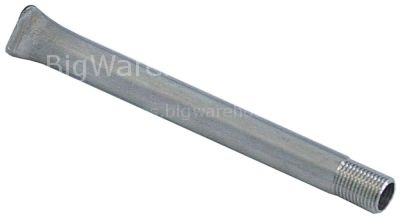

Thermowell thread M10x1 ID ø 7,7mm L 108mm SS single ø 10mm
Thermowell thread M10x1 ID ø 7,7mm L 108mm SS single ø 10mm
O-ring EPDM thickness 2,62mm ID ø 9,92mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 9,92mm Qty 1 pcs
Equipment foot thread M10 thread L 23mm H 12,5mm ø 38mm WS 17 Qt
Equipment foot thread M10 thread L 23mm H 12,5mm ø 38mm WS 17 Qt
Thermostat t.max. 90°C temperature range 30-90°C 1-pole 1CO 16A
Thermostat t.max. 90°C temperature range 30-90°C 1-pole 1CO 16A
Power contactor resistive load 20 A 230VAC (AC3/400V) 8.5A/5.5kW
Power contactor resistive load 20 A 230VAC (AC3/400V) 8.5A/5.5kW
O-ring EPDM thickness 2,62mm ID ø 34,6mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 34,6mm Qty 1 pcs
Displaying 21 to 40 (of 114 products)
