LUX60EL LUX-61-ELETTRONICA Ver:200411-Rev.01 Parts List
Tension spring ø 12mm total length 275mm wire gauge ø 1,6mm
Tension spring ø 12mm total length 275mm wire gauge ø 1,6mm

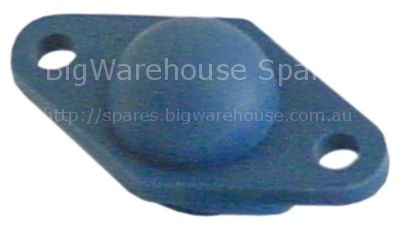

Bearing for door rubber ID ø 12mm mounting pos. left
Bearing for door rubber ID ø 12mm mounting pos. left
Pressure control pressure range 76/38mbar connection 6mm ø 58mm
Pressure control pressure range 76/38mbar connection 6mm ø 58mm
Equipment foot thread M10 thread L 23mm H 12,5mm ø 38mm WS 17 Qt
Equipment foot thread M10 thread L 23mm H 12,5mm ø 38mm WS 17 Qt
Equipment foot thread M10 thread L 23mm H 12,5mm ø 38mm WS 17 Qt
Equipment foot thread M10 thread L 23mm H 12,5mm ø 38mm WS 17 Qt
Heating element 3000W 230V heating circuits 3 mounting ø 47,5mm
Heating element 3000W 230V heating circuits 3 mounting ø 47,5mm
Pressure control pressure range 100/18mbar connection 6mm ø 58mm
Pressure control pressure range 100/18mbar connection 6mm ø 58mm
Ribbon cable 10-pole L 1000mm plug type FC-10P raster size 2,54m
Ribbon cable 10-pole L 1000mm plug type FC-10P raster size 2,54m

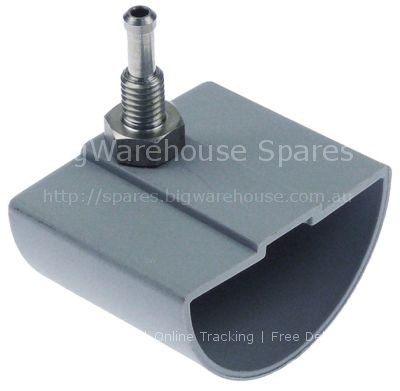

Air trap W 54mm H 45mm thread M8 hose ø 5mm plastic
Air trap W 54mm H 45mm thread M8 hose ø 5mm plastic
Displaying 81 to 100 (of 145 products)
