17R KP151-E Ver:200702-Rev.07 Parts List
Keypad foil dishwasher H63/373E/144E L 134mm W 79mm buttons 6
Keypad foil dishwasher H63/373E/144E L 134mm W 79mm buttons 6

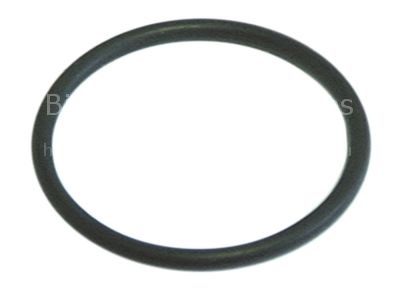

O-ring EPDM thickness 3,53mm ID ø 37,69mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 37,69mm Qty 1 pcs

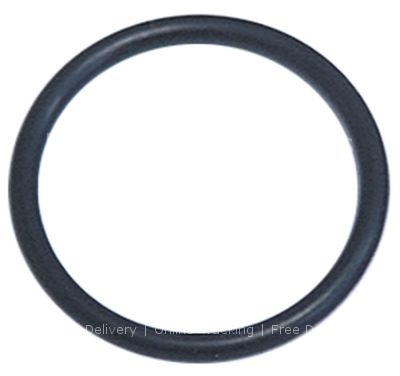

O-ring EPDM thickness 2,62mm ID ø 34,6mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 34,6mm Qty 1 pcs

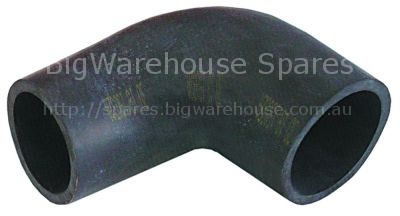

Formed hose end piece A int. ø 58mm ø end piece B 50mm warewashi
Formed hose end piece A int. ø 58mm ø end piece B 50mm warewashi
Thumb screw thread M8 SS ø 30mm H 3mm thread L 8mm
Thumb screw thread M8 SS ø 30mm H 3mm thread L 8mm

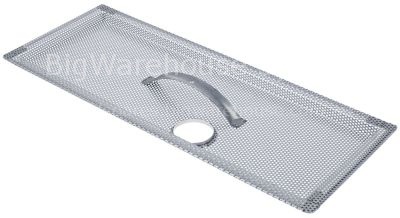

Flat filter for dishwasher H 16mm L 485mm W 190mm
Flat filter for dishwasher H 16mm L 485mm W 190mm
Momentary switch unit 1NO 250V 16A connection male faston 6.3mm
Momentary switch unit 1NO 250V 16A connection male faston 6.3mm
Impellor ø 90 mm H 9 mm pump type R63.T33 PRS thread M10R shaft
Impellor ø 90 mm H 9 mm pump type R63.T33 PRS thread M10R shaft
O-ring EPDM thickness 2,62mm ID ø 9,92mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 9,92mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 9,92mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 9,92mm Qty 1 pcs
Plain washer ID ø 8,6mm ED ø 16mm thickness 1,5mm SS Qty 1 pcs
Plain washer ID ø 8,6mm ED ø 16mm thickness 1,5mm SS Qty 1 pcs
Displaying 81 to 100 (of 199 products)
