102K AQUA-40-RL09 Ver:200910-Rev.00 Parts List

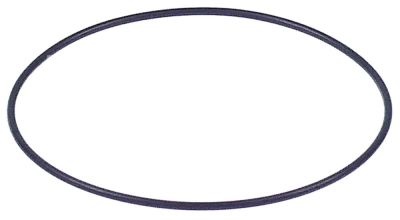

O-ring EPDM thickness 1,78 mm ID ø 72,75 mm Qty 1 pcs
O-ring EPDM thickness 1,78 mm ID ø 72,75 mm Qty 1 pcs
Heating element 2400W 230V mounting ø 38,5mm heating circuits 1
Heating element 2400W 230V mounting ø 38,5mm heating circuits 1

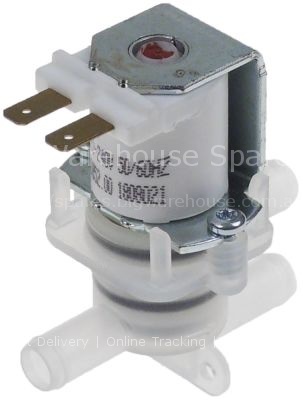

Solenoid valve single 230VAC outlet 10,5mm MILANO 00168401 plas
Solenoid valve single 230VAC outlet 10,5mm MILANO 00168401 plas

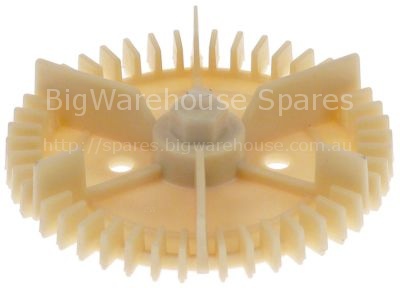

Impellor ø 74 mm H 16 mm pump type L63.T40 thread M10L
Impellor ø 74 mm H 16 mm pump type L63.T40 thread M10L

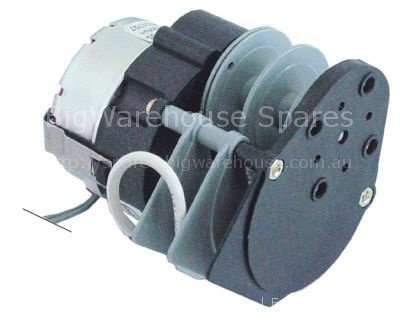

Timer CDC 11803 engines 1 chambers 3 operation time 120s 115V
Timer CDC 11803 engines 1 chambers 3 operation time 120s 115V
Pump cover OLYMPIA outlet ø 30mm auxiliary pressure connection 1
Pump cover OLYMPIA outlet ø 30mm auxiliary pressure connection 1

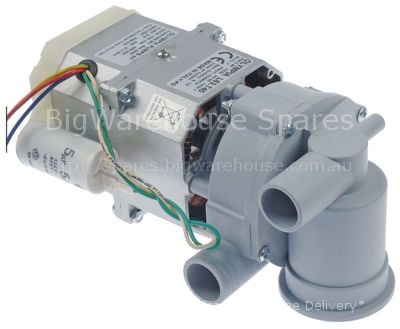

Pump inlet ø 28mm outlet ø 30mm type L63.T40 230V 50Hz 1 phase 0
Pump inlet ø 28mm outlet ø 30mm type L63.T40 230V 50Hz 1 phase 0
Pump inlet ø 28mm outlet ø 30mm type L63.T40 230V 50Hz 1 phase 0
Pump inlet ø 28mm outlet ø 30mm type L63.T40 230V 50Hz 1 phase 0

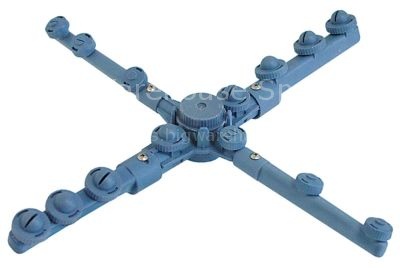

Wash and rinse arm wash arm L 370mm rinse arm L 370mm w. jets 5
Wash and rinse arm wash arm L 370mm rinse arm L 370mm w. jets 5
