Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
92 K2700 Ver:200906-Rev.03 Parts List
Solenoid valve single angled 24V inlet 3/4" outlet 13mm DN10 dut
Solenoid valve single angled 24V inlet 3/4" outlet 13mm DN10 dut
O-ring EPDM thickness 2,62mm ID ø 11,91mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 11,91mm Qty 1 pcs
Flat gasket rubber ED ø 40mm ID ø 25,5mm thickness 1,7mm Qty 1 p
Flat gasket rubber ED ø 40mm ID ø 25,5mm thickness 1,7mm Qty 1 p
Nut L 32mm W 32mm H 25mm thread M26x1.5 WS 32 plastic
Nut L 32mm W 32mm H 25mm thread M26x1.5 WS 32 plastic
Magnetic switch L 40mm W 13mm 1NO 250V 0,04A P max. 10W connecti
Magnetic switch L 40mm W 13mm 1NO 250V 0,04A P max. 10W connecti
Body for back flow restrictor L 71mm W 56mm H 32mm hose ø 12mm
Body for back flow restrictor L 71mm W 56mm H 32mm hose ø 12mm

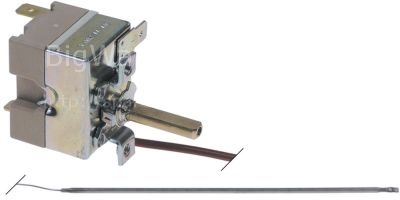

Thermostat t.max. 280°C temperature range 50-280°C 1-pole 1NO 16
Thermostat t.max. 280°C temperature range 50-280°C 1-pole 1NO 16
Temperature probe NTC 10kOhm cable silicone probe -40 up to +110
Temperature probe NTC 10kOhm cable silicone probe -40 up to +110
Control PCB dishwasher AX 161/ AX 290 L 160mm W 115mm cable leng
Control PCB dishwasher AX 161/ AX 290 L 160mm W 115mm cable leng
Displaying 141 to 160 (of 386 products)
