F125C Ver:20040101-20061131 Parts List
Equipment foot tube ø 47mm H 68mm plastic thread 1¼" ET
Equipment foot tube ø 47mm H 68mm plastic thread 1¼" ET
Equipment foot tube ø 47mm H 68mm plastic thread 1¼" ET
Equipment foot tube ø 47mm H 68mm plastic thread 1¼" ET
Float for ice maker ø 75mm L 115mm H 40mm plastic
Float for ice maker ø 75mm L 115mm H 40mm plastic

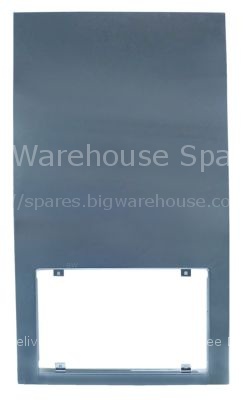

Side panel for ice maker W 490mm H 860mm mounting pos. right thi
Side panel for ice maker W 490mm H 860mm mounting pos. right thi
Machine lubricant food-safe -50 up to +160°C approval NSF 380g
Machine lubricant food-safe -50 up to +160°C approval NSF 380g
Ice breaker ID ø 26 mm ED ø 51 mm H 59 mm brass
Ice breaker ID ø 26 mm ED ø 51 mm H 59 mm brass
O-ring EPDM thickness 2mm ID ø 171mm Qty 1 pcs
O-ring EPDM thickness 2mm ID ø 171mm Qty 1 pcs
Gear motor type 794225 220V voltage AC 50/60Hz shaft ø 22,2mm L
Gear motor type 794225 220V voltage AC 50/60Hz shaft ø 22,2mm L
Gear wheel ø 21,3mm teeth 18-41 D1 ø 58mm shaft ø 8 shaft L 55mm
Gear wheel ø 21,3mm teeth 18-41 D1 ø 58mm shaft ø 8 shaft L 55mm
Temperature probe PTC 2kOhm cable TPE probe -50 up to +150°C cab
Temperature probe PTC 2kOhm cable TPE probe -50 up to +150°C cab
Retaining ring E D1 ø 7mm D2 ø 14mm SS DIN 6799 thickness 0,9mm
Retaining ring E D1 ø 7mm D2 ø 14mm SS DIN 6799 thickness 0,9mm
Deep-groove ball bearing type 6201-2RS shaft ø 12mm ED ø 32mm W
Deep-groove ball bearing type 6201-2RS shaft ø 12mm ED ø 32mm W
Ball bearing type SR14-2RS shaft ø 7/8" ext. ø 1 7/8" W 3/8"
Ball bearing type SR14-2RS shaft ø 7/8" ext. ø 1 7/8" W 3/8"

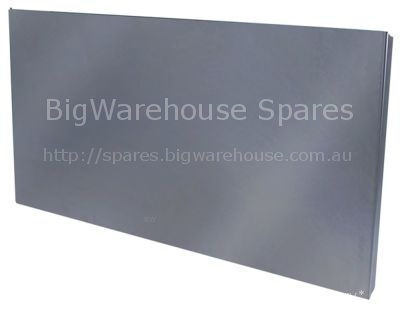

Door for ice maker W 680mm H 350mm thickness 20mm complete
Door for ice maker W 680mm H 350mm thickness 20mm complete
Cable for level electrode cable length 1800mm
Cable for level electrode cable length 1800mm
Displaying 41 to 60 (of 133 products)
