Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
JUMBO30-Mastro Ver:200901- Parts List
Flat-headed bolt thread M6 L 20mm SS Qty 1 pcs intake hexagonal
Flat-headed bolt thread M6 L 20mm SS Qty 1 pcs intake hexagonal
Intake body ID ø 5mm ED ø 27mm L 24mm for vacuum packing machine
Intake body ID ø 5mm ED ø 27mm L 24mm for vacuum packing machine
O-ring EPDM thickness 3mm ID ø 22mm Qty 1 pcs
O-ring EPDM thickness 3mm ID ø 22mm Qty 1 pcs
Transformer primary 230VAC secondary 24VAC 30VA secondary 1,25A
Transformer primary 230VAC secondary 24VAC 30VA secondary 1,25A
Transformer primary 0-230VAC secondary 0-18VAC 500VA connection
Transformer primary 0-230VAC secondary 0-18VAC 500VA connection
Oil separator filter flow rate 8m³/h ø 35mm L 85mm thread 3/8"
Oil separator filter flow rate 8m³/h ø 35mm L 85mm thread 3/8"

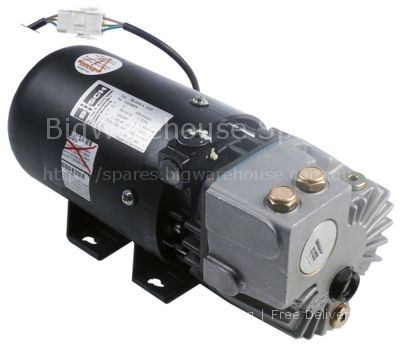

Vacuum pump 8m³/h 220/240V 0,35kW 50/60Hz type PB0008
Vacuum pump 8m³/h 220/240V 0,35kW 50/60Hz type PB0008
Displaying 21 to 40 (of 80 products)
