Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
GLB615 Ver:200301- Parts List
Supply hose PVC straight-curved DN13 connections 3/4" L 1500mm o
Supply hose PVC straight-curved DN13 connections 3/4" L 1500mm o

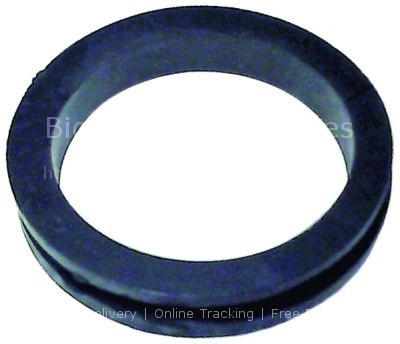

Flat gasket rubber ED ø 60mm ID ø 47mm thickness 3mm Qty 1 pcs
Flat gasket rubber ED ø 60mm ID ø 47mm thickness 3mm Qty 1 pcs

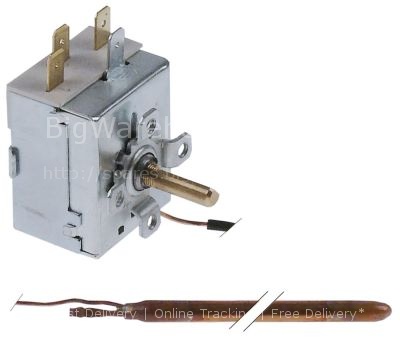

Thermostat t.max. 86°C temperature range 0-86°C 1-pole 1CO 16A p
Thermostat t.max. 86°C temperature range 0-86°C 1-pole 1CO 16A p

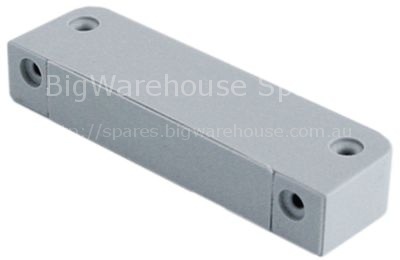

Magnet L 63mm H 10,7mm W 18,8mm hole distance 52mm M2 hole ø 2mm
Magnet L 63mm H 10,7mm W 18,8mm hole distance 52mm M2 hole ø 2mm
Flat gasket FIBER ED ø 25mm ID ø 16,5mm thickness 1mm warewashin
Flat gasket FIBER ED ø 25mm ID ø 16,5mm thickness 1mm warewashin
Formed hose warewashing L-shape equiv. no. 903674
Formed hose warewashing L-shape equiv. no. 903674
Heating element 1600W 230V heating circuits 1 L 275mm W 38mm H 2
Heating element 1600W 230V heating circuits 1 L 275mm W 38mm H 2
O-ring EPDM thickness 3,53mm ID ø 32,93mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 32,93mm Qty 1 pcs

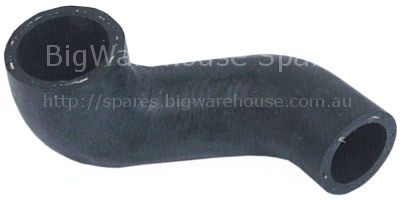

Formed hose S-shape warewashing equiv. no. 903668
Formed hose S-shape warewashing equiv. no. 903668
Plain washer ID ø 10,5mm ED ø 20mm thickness 2mm SS Qty 1 pcs DI
Plain washer ID ø 10,5mm ED ø 20mm thickness 2mm SS Qty 1 pcs DI

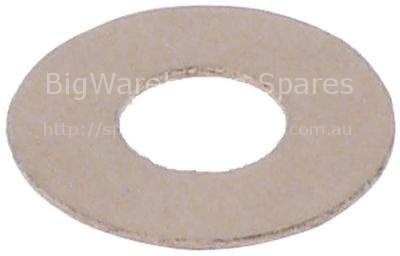

Flat gasket paper ED ø 24mm ID ø 10,5mm thickness 1mm Qty 1 pcs
Flat gasket paper ED ø 24mm ID ø 10,5mm thickness 1mm Qty 1 pcs
Displaying 61 to 80 (of 100 products)
